Removal And Installation
WARNING: This page is about a different variant/trim than selected.
- Disconnect the drive belt.
(Refer to Timing System - "DRIVE BELT ")

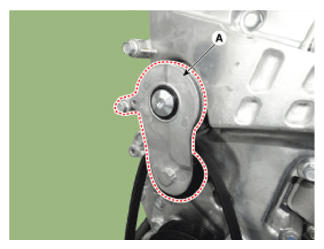

- Remove the drive belt tensioner (A).
Tightening torque
center bolt:
29.4 - 41.2 N.m (3.0 - 4.2 kgf.m, 21.7 - 30.4 lb-ft)
fixing bolt:
39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb-ft)
- Install in the reverse order of removal.
