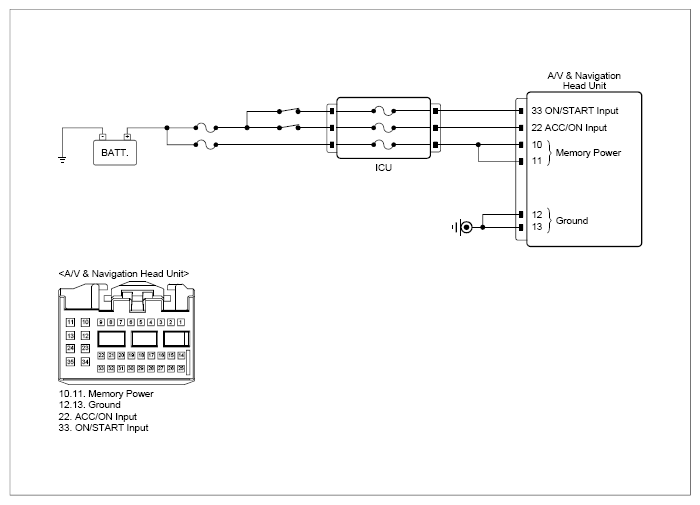

Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
AVN connector | 10, 11, 22, 33 (power) | Chassis ground | - | B+ |
|
AVN connector | 12, 13 (ground) | Chassis ground | - | Approx. below 1Ω |
Good
- Fault is intermittent caused by poor contact in the sensor's and/or AVN's connector or was repaired and AVN memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
- Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the AVN and go to "VERIFICATION OF REPAIR " procedure.
