Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

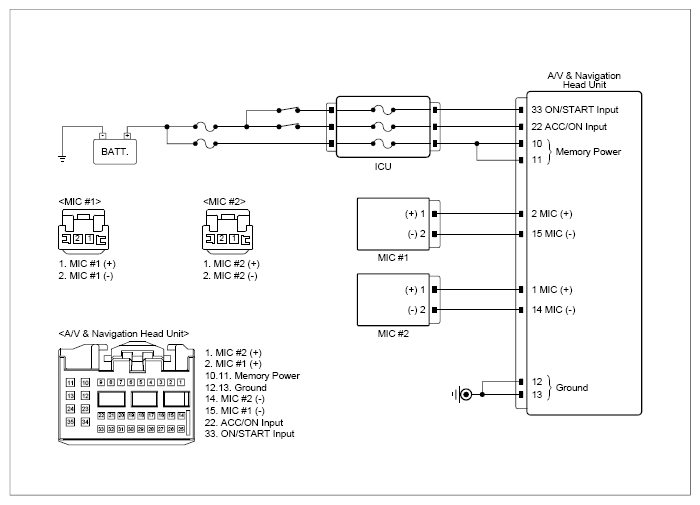

G13484151

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	MIC #1 connector	1 (+)	AVN connector	2 (+)	Approx. below 1Ω
	MIC #1 connector	2 (-)	AVN connector	15 (-)	Approx. below 1Ω
	MIC #2 connector	1 (+)	AVN connector	1 (+)	Approx. below 1Ω
	MIC #2 connector	2 (-)	AVN connector	14 (-)	Approx. below 1Ω

Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the AVN and go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the front MIC and go to "VERIFICATION OF REPAIR " procedure.
