Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

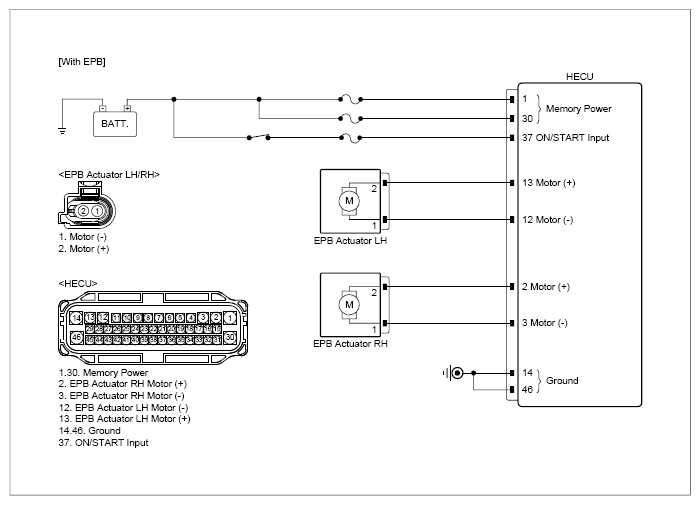

G13484829Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "ON".
  2. EPB "release".
 EPB actuator RH connector 2 (motor+) Chassis ground - Fig.1
EPB actuator RH connector 1 (motor-) Chassis ground -
  1. Ignition "ON".
  2. EPB "apply".
 EPB actuator RH connector 2 (motor+) Chassis ground - Fig.2
EPB actuator RH connector 1 (motor-) Chassis ground -
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 EPB actuator RH connector 2 (motor+) HECU connector (With EPB) 2 (motor+) Approx. below 1Ω
EPB actuator RH connector 1 (motor-) HECU connector (With EPB) 3 (motor-) Approx. below 1Ω

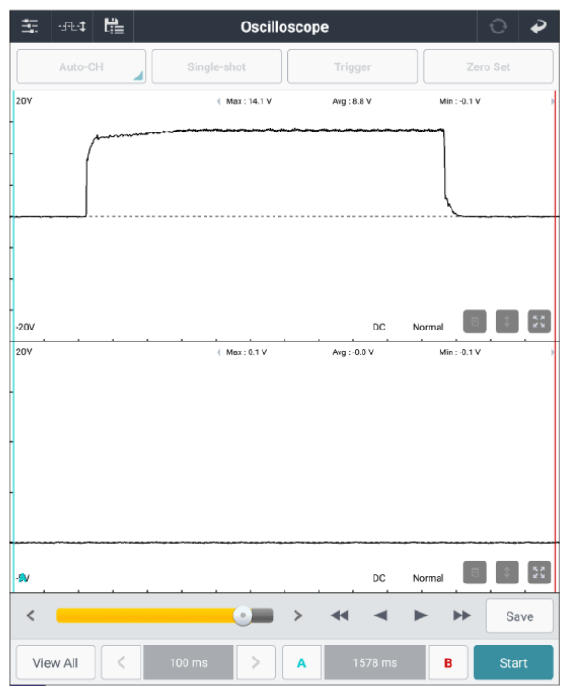

G13484830Courtesy of KIA MOTORS AMERICA, INC.
G13484831Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
