Component Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

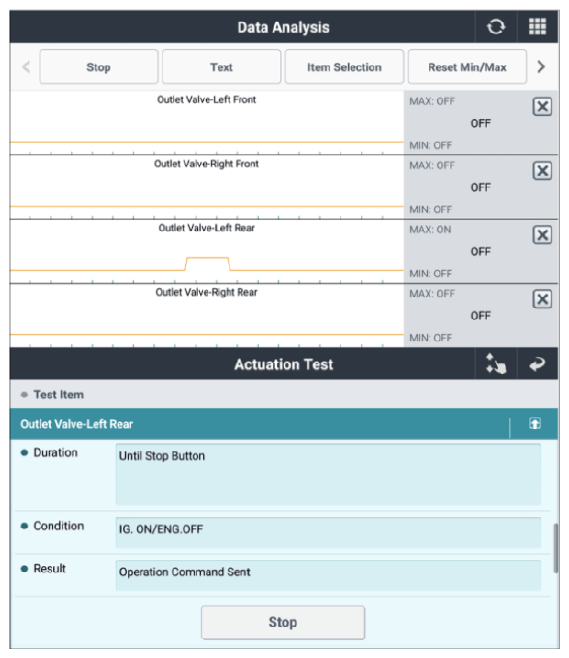

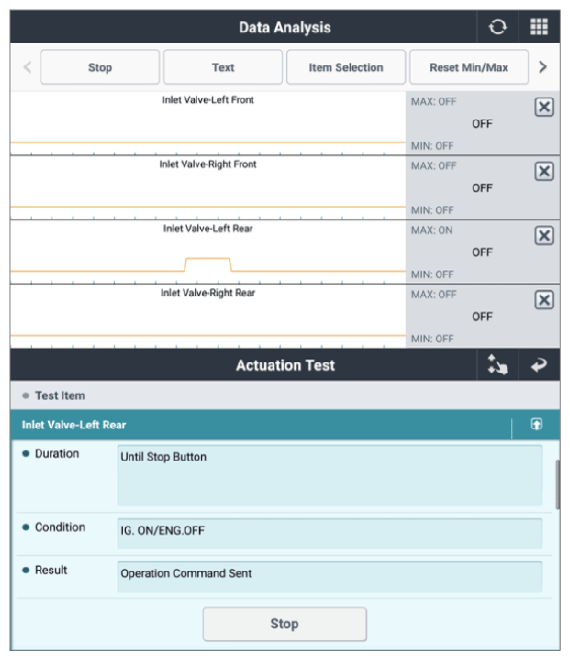

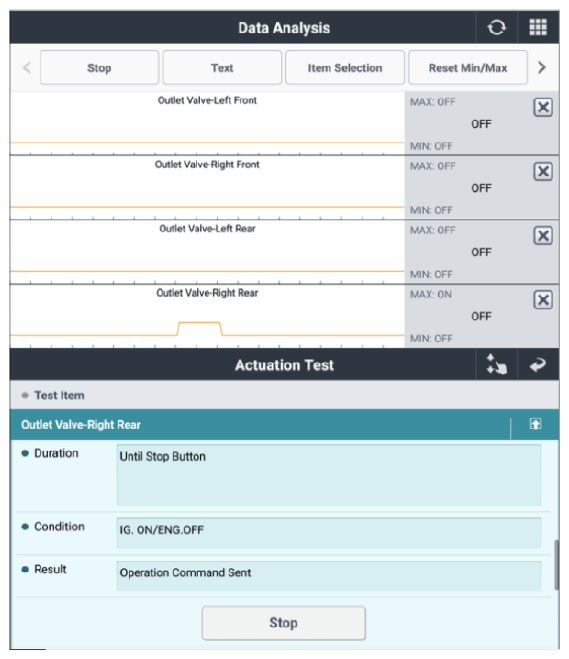

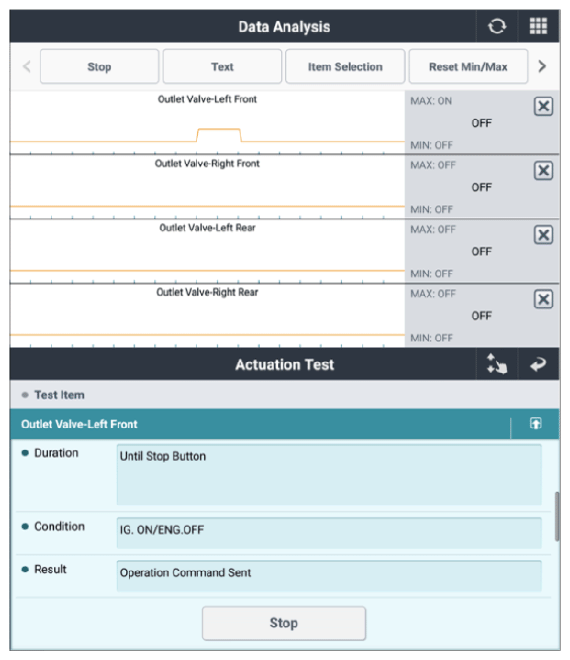

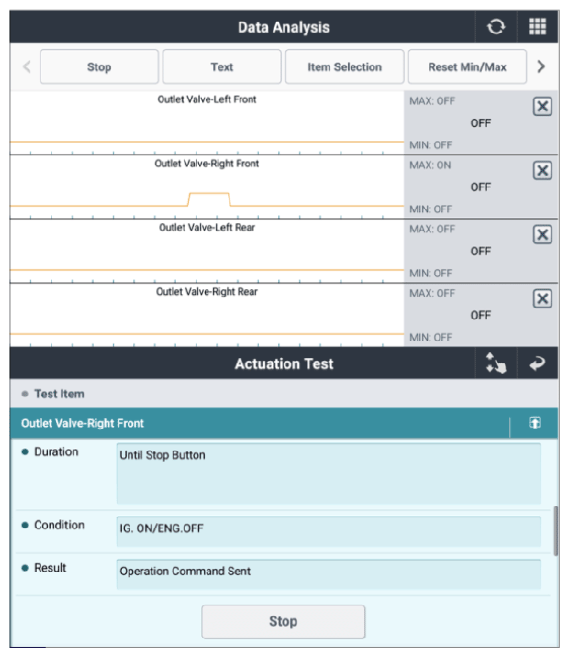

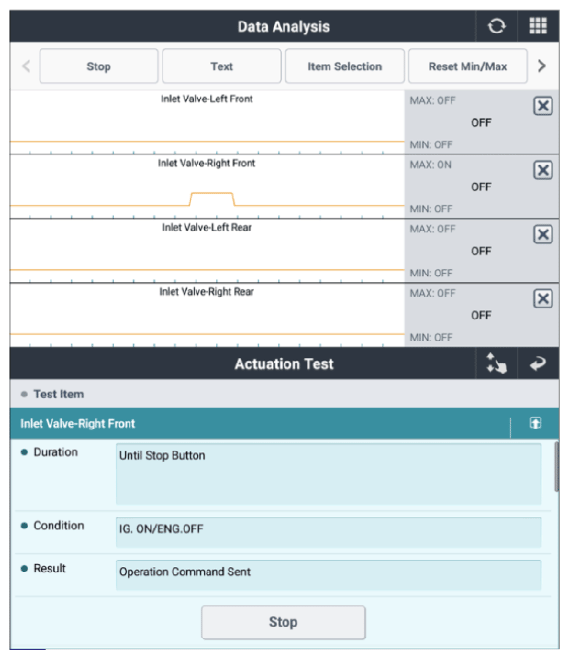

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "Actuation Test" and monitor parameter in "Current Data" with KDS.	Fig.1 to 8

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps' HECU, perform "VEHICLE S/W MANAGEMENT " procedure of C110101.
If no problems were found with the circuits or connectors, replace the HECU and go to "VERIFICATION OF REPAIR " procedure.
* In case of replacing HECU, perform "VEHICLE S/W MANAGEMENT " procedure of C110101.
