Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

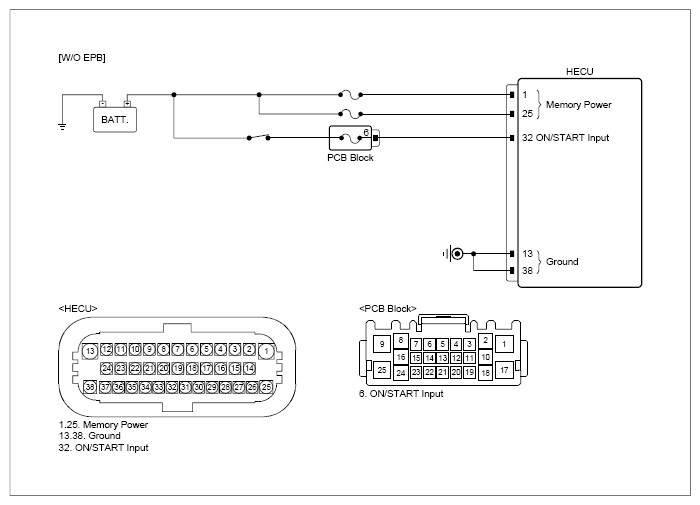

G13484611Courtesy of KIA MOTORS AMERICA, INC.

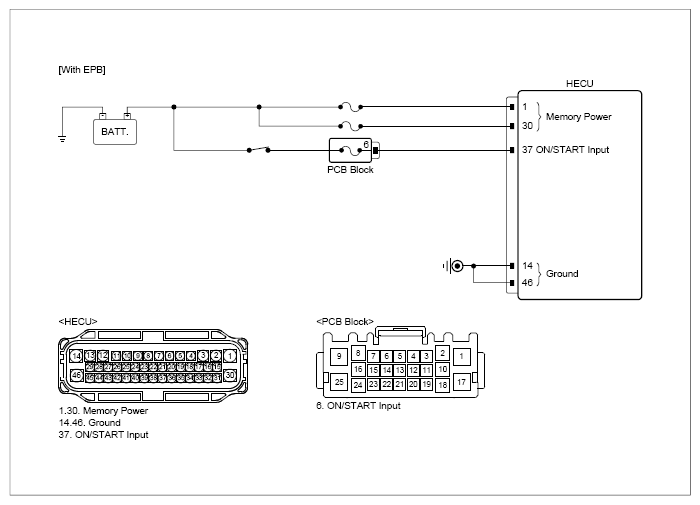

G13484612Courtesy of KIA MOTORS AMERICA, INC.
Circuit Inspection (W/O EPB)
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 HECU connector 1, 25 (Memory power) Chassis ground - B+
HECU connector 13, 38 (ground) Chassis ground - Approx. below 1Ω
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 HECU connector 32 (ON/START Input) Chassis ground - B+
Circuit Inspection (with EPB)
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 HECU connector 1, 30 (Memory power) Chassis ground - B+
HECU connector 14, 46 (ground) Chassis ground - Approx. below 1Ω
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 HECU connector 37 (ON/START Input) Chassis ground - B+

Good

No Good
