Monitor DTC Status
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

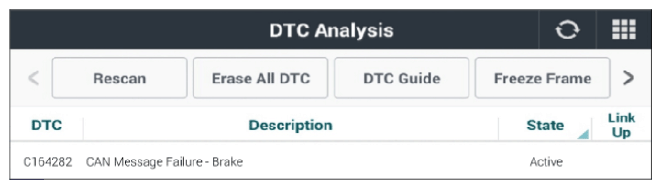

Fig.1 |
Active Fault
- Select HECU system and Check DTCs related with master cylinder pressure system. If DTC is exist, repair as necessary and then confirm clear. Afterward, select SCC/FCA system and check DTCs.
- Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
History/Pending Fault
- Go to "VERIFICATION OF REPAIR " procedure.
