Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: * Perform the "Variant Coding" and "Inspection/correction of the front-radar mounting angle (FCA/SCC)" on "Vehicle S/W Management", once SCC/FCA ECU is replaced.
* Do not select the [C1] in "Inspection/correction of the front-radar mounting angle (FCA/SCC)", unless you have proper equipment to perform inline procedure.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 10

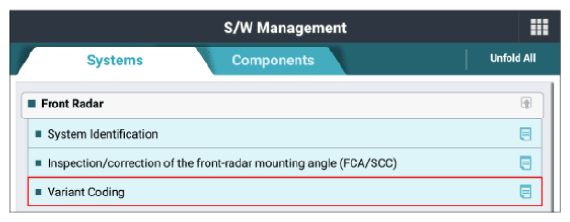

G13485966Courtesy of KIA MOTORS AMERICA, INC.

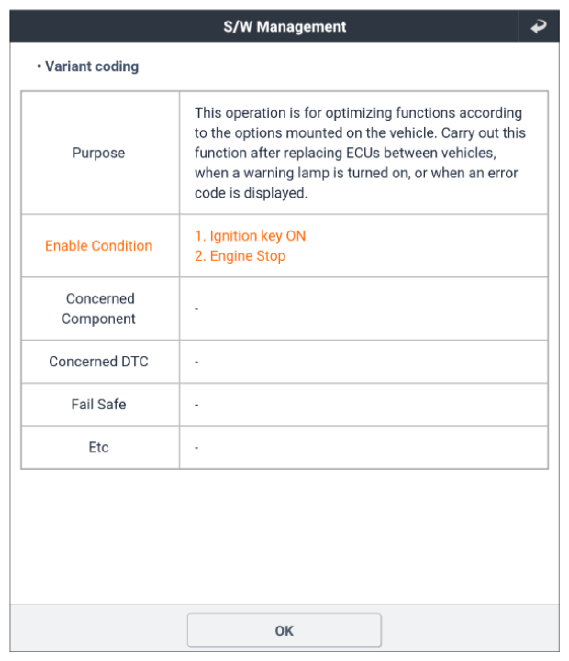

G13485967Courtesy of KIA MOTORS AMERICA, INC.

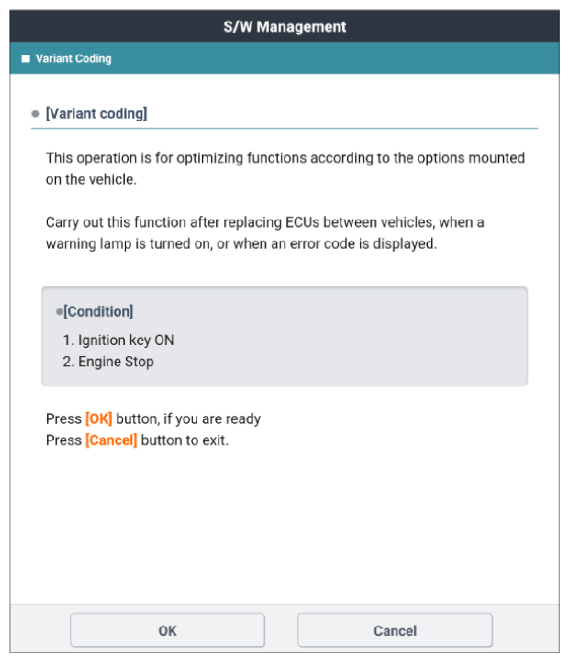

G13485968Courtesy of KIA MOTORS AMERICA, INC.
G13485969Courtesy of KIA MOTORS AMERICA, INC.

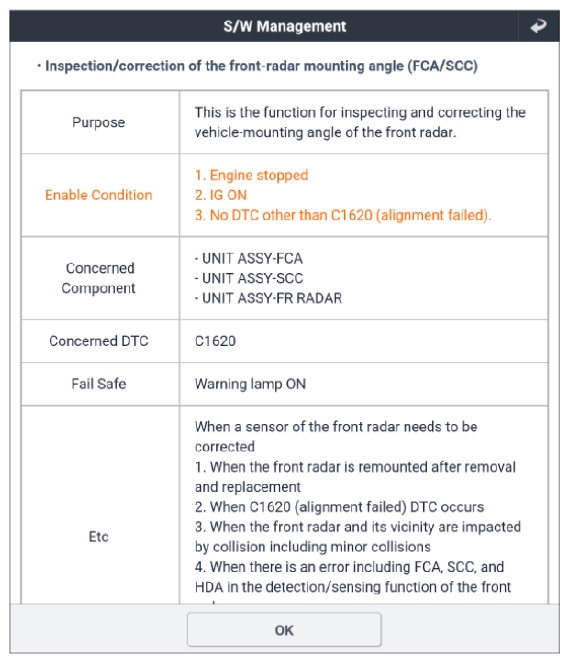

G13485970Courtesy of KIA MOTORS AMERICA, INC.

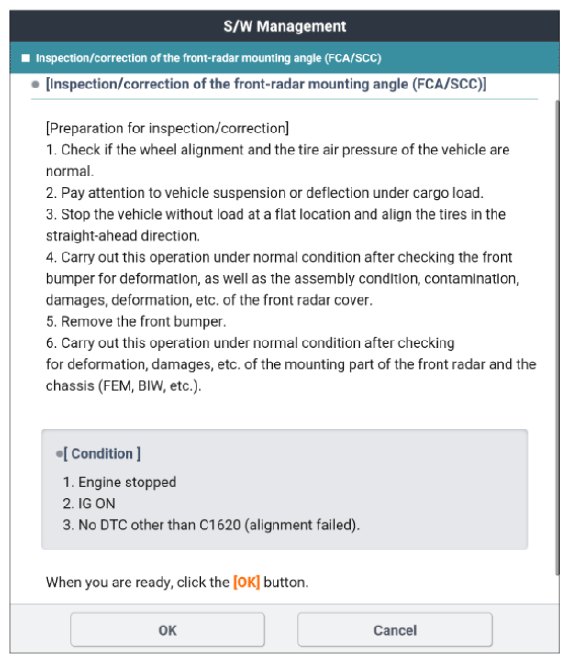

G13485971Courtesy of KIA MOTORS AMERICA, INC.

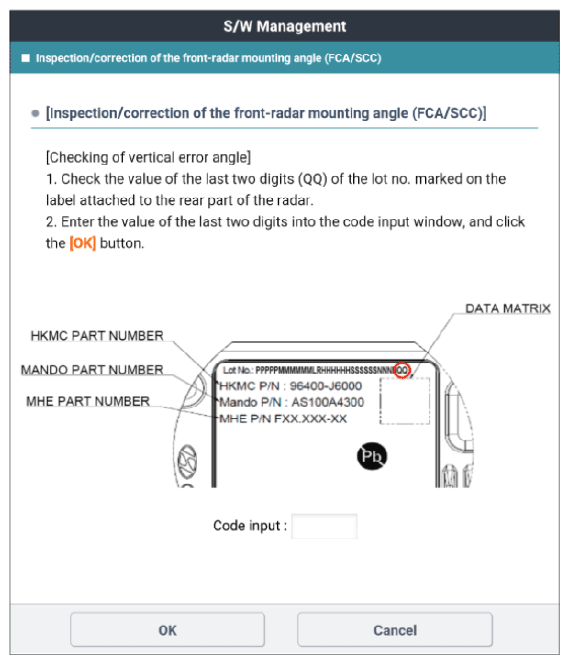

G13485972Courtesy of KIA MOTORS AMERICA, INC.

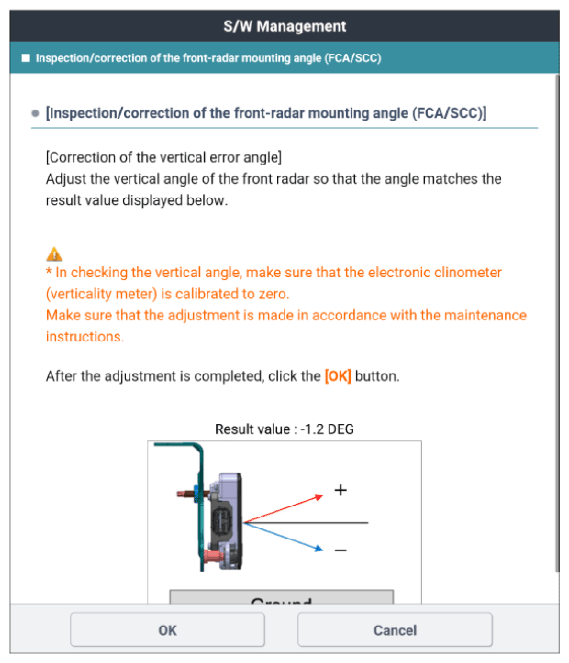

G13485973Courtesy of KIA MOTORS AMERICA, INC.

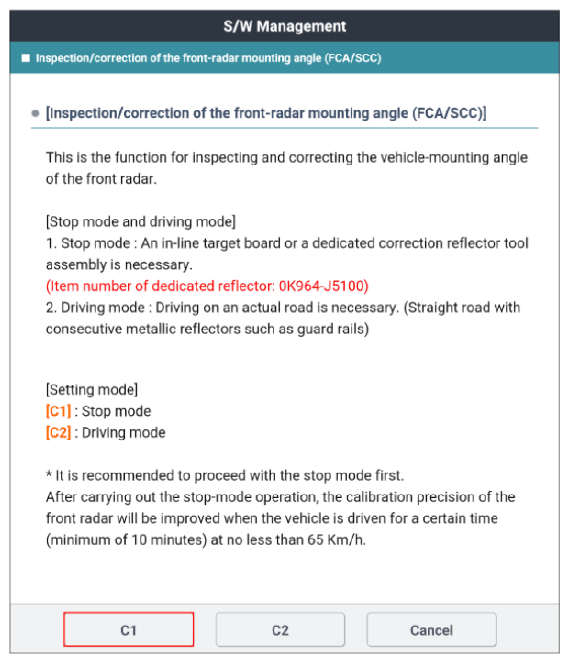

G13485974Courtesy of KIA MOTORS AMERICA, INC.

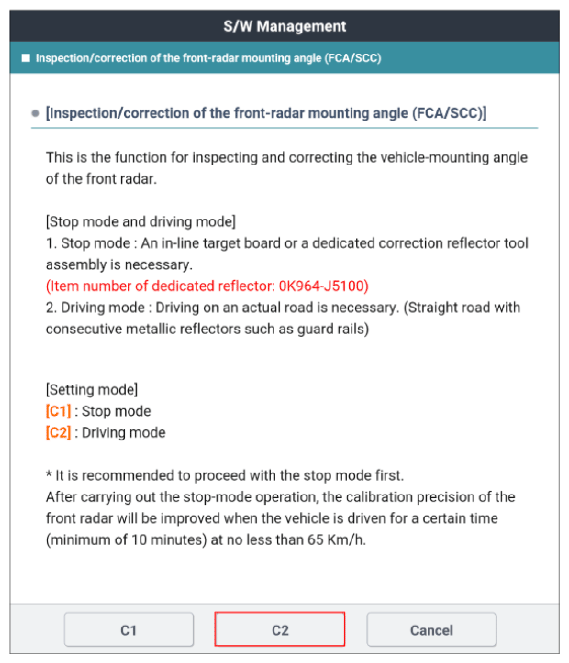

G13485975Courtesy of KIA MOTORS AMERICA, INC.
