Monitor DTC Status

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

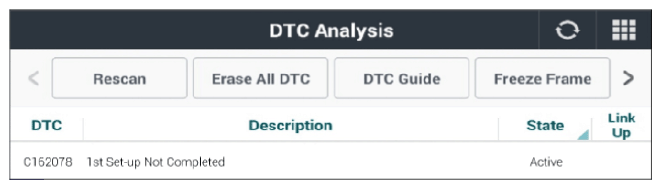

Ignition "ON".	Connect KDS/GDS to "Data Link Connector (DLC)". Monitor "Diagnostic Trouble Codes (DTC)" with KDS/GDS. Click the DTC (1), and then select "Fault Code Information" items (2). Accordance with the type of detail of "Fault Code Information", must be checked.	Fig.1

Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

Fault is intermittent caused by poor contact in the sensor's and/or control module's connector or was repaired and control module's memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary and then go to "SYSTEM INSPECTION " procedure.
If the DTC is erased, check for proper operation. If problem is corrected, replace SCC/FCA and then go to "SYSTEM INSPECTION " procedure.
* In a case of replacing SCC/FCA module, require to set the "Variant Coding" by KDS/GDS.

History/Pending Fault

This fault was repaired and SCC/FCA module memory was not cleared. Go to "VERIFICATION OF REPAIR " procedure.
