Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

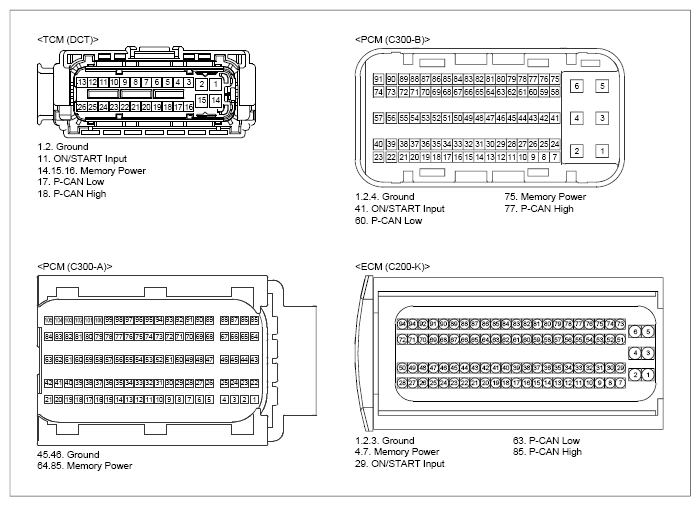

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
PCM connector (2.0 MPI) | 64, 85 (Memory power) | Chassis ground | - | B+ |
|
TCM connector | 14, 15, 16 (Memory power) | Chassis ground | - | B+ |
| TCM connector | 11 (ON/START Input) | Chassis ground | - | B+ | |
|
PCM connector (2.0 MPI) | 45, 46 (ground) | Chassis ground | - | Approx. below 1Ω |
|
TCM connector | 1, 2 (ground) | Chassis ground | - | Approx. below 1Ω |
|

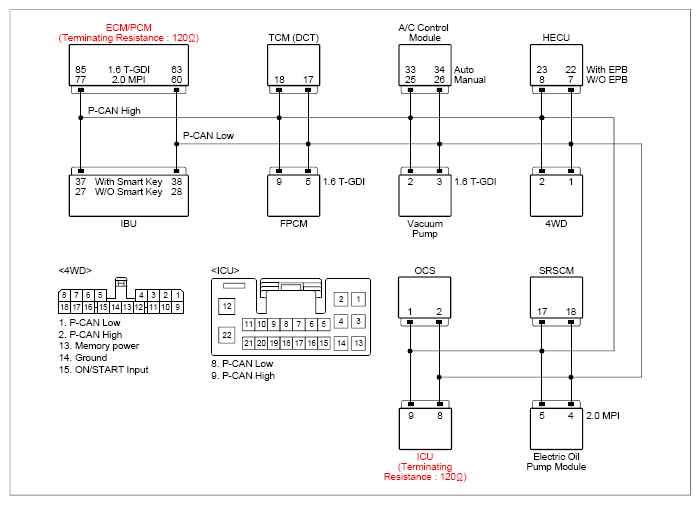

ICU connector | 9 (P-CAN high) | Chassis ground | - | Fig.1 |
| ICU connector | 8 (P-CAN low) | Chassis ground | - | ||
|
ICU connector | 9 (P-CAN high) | PCM connector (2.0 MPI) | 77 (P-CAN high) | Approx. below 1Ω |
| ICU connector | 8 (P-CAN low) | PCM connector (2.0 MPI) | 60 (P-CAN low) | Approx. below 1Ω | |
|
ICU connector | 9 (P-CAN high) | TCM connector | 18 (P-CAN high) | Approx. below 1Ω |
| ICU connector | 8 (P-CAN low) | TCM connector | 17 (P-CAN low) | Approx. below 1Ω | |
|

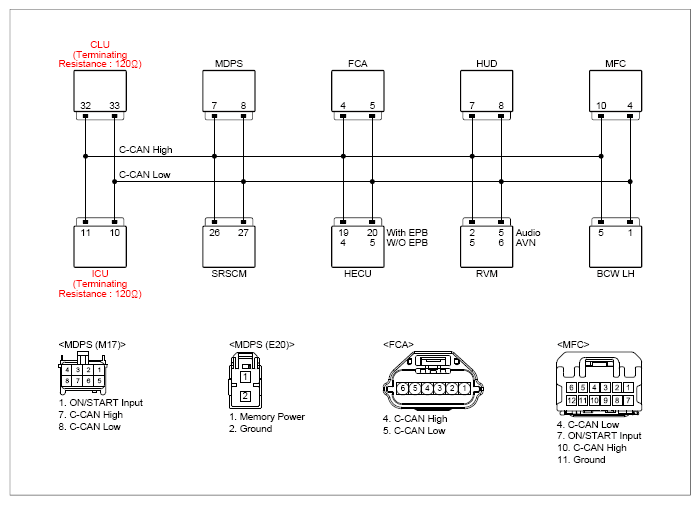

SCC/FCA connector | 4 (C-CAN high) | Chassis ground | - | Fig.2 |
| SCC/FCA connector | 5 (C-CAN low) | Chassis ground | - | ||
|
SCC/FCA connector | 4 (C-CAN high) | ICU connector | 11 (C-CAN high) | Approx. below 1Ω |
| SCC/FCA connector | 5 (C-CAN low) | ICU connector | 10 (C-CAN low) | Approx. below 1Ω | |
Good
- Check PCM/TCM, ICU (CGW), SCC/FCA module connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "SYSTEM INSPECTION " procedure.
No Good
- Check for open or short in harness.
- Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.
