Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

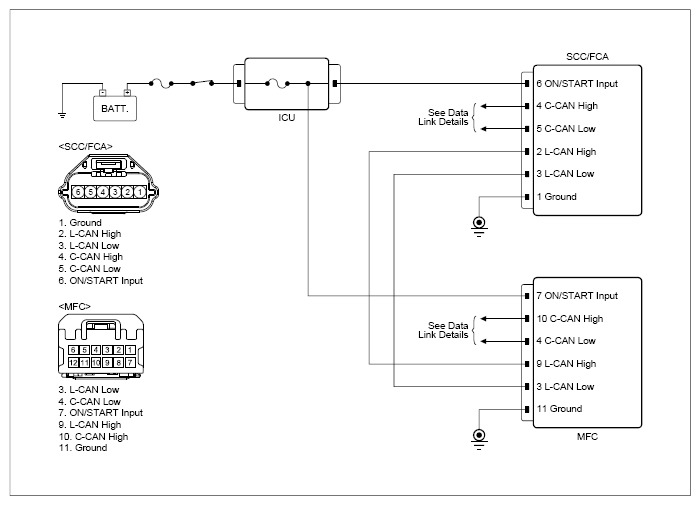

G13485699

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "ON".	SCC/FCA connector	2 (L-CAN high)	Chassis ground	-	Fig.1
Ignition "ON".	SCC/FCA connector	3 (L-CAN low)	Chassis ground	-	Fig.1
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	SCC/FCA connector	2 (L-CAN high)	Chassis ground	_-	∞ (infinity)Ω
	SCC/FCA connector	3 (L-CAN low)	Chassis ground	-	∞ (infinity)Ω
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	SCC/FCA connector	2 (L-CAN high)	MFC connector	9 (L-CAN high)	Approx. below 1Ω
	SCC/FCA connector	3 (L-CAN low)	MFC connector	3 (L-CAN low)	Approx. below 1Ω

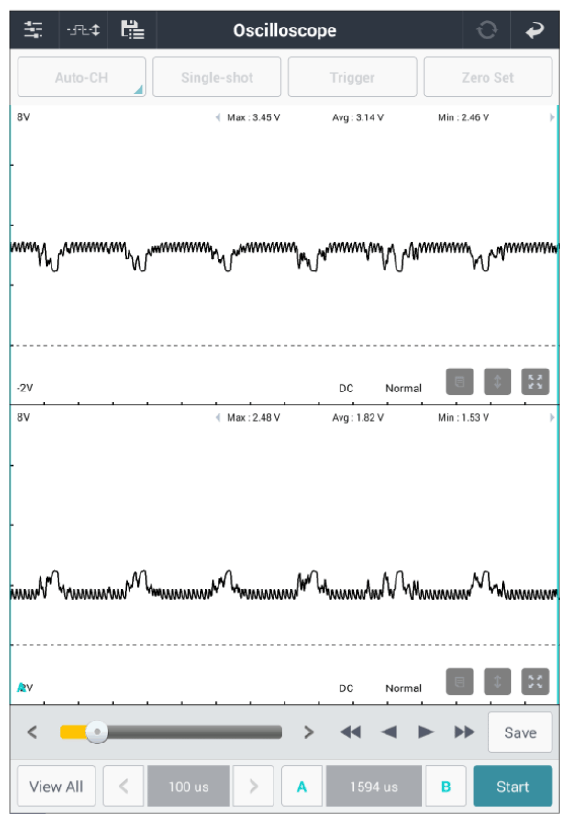

G13485700

Courtesy of KIA MOTORS AMERICA, INC.

Good

Check MFC, SCC/FCA module connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "SYSTEM INSPECTION " procedure.

No Good

Check for open or short in harness.
Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.
