Monitor KDS/GDS Data

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

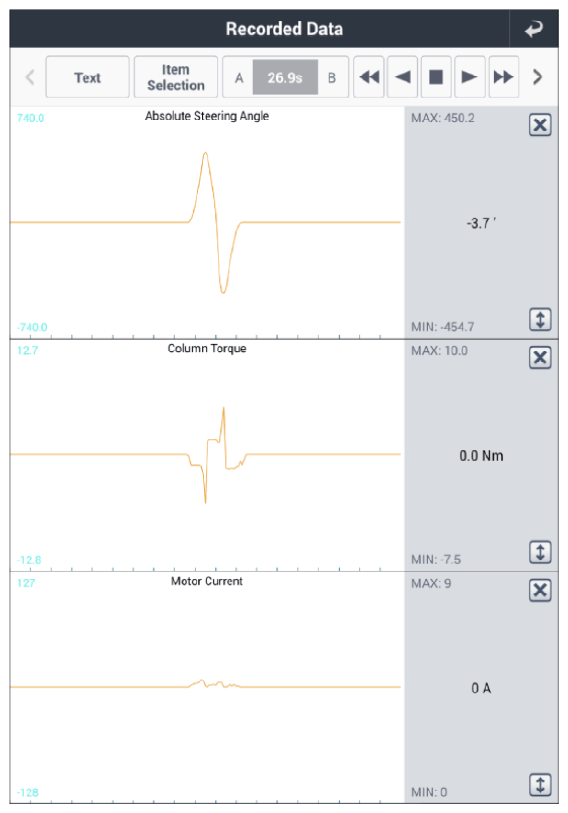

Ignition "ON".	Connect KDS/GDS to "Data Link Connector (DLC)". Select MDPS system. Monitor parameters in "Current Data" with KDS/GDS.	Fig.1

G13485665

Courtesy of KIA MOTORS AMERICA, INC.

Good

Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary, go to "VERIFICATION OF REPAIR " procedure.

No Good

Select MDPS system and check DTCs related with SAS. If DTC is exist, repair as necessary and then confirm clear. Afterward, select SCC/FCA system and check DTCs.
Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
