Monitor KDS/GDS Data
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

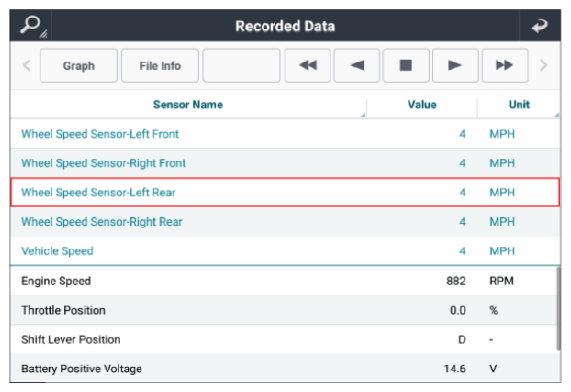

Fig.1 |
Good
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary, go to "VERIFICATION OF REPAIR " procedure.
No Good
- Check WSS related item and then carefully re-do this troubleshooting guide steps.
- If problem still occurs, go to "WIRING INSPECTION " procedure.
