Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: * Perform the "Variant Coding" and "Inspection/correction of the front-radar mounting angle (FCA/SCC)" on "Vehicle S/W Management", once SCC/FCA ECU is replaced.
* Do not select the [C1] in "Inspection/correction of the front-radar mounting angle (FCA/SCC)", unless you have proper equipment to perform inline procedure.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS/GDS.
 Fig.1 to 10

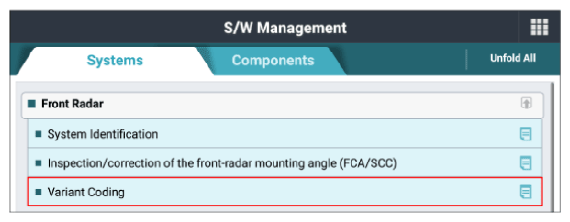

G13485599Courtesy of KIA MOTORS AMERICA, INC.

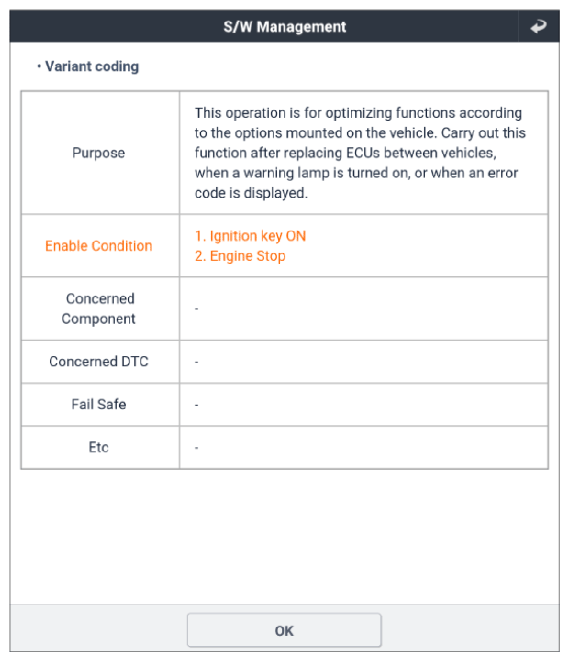

G13485600Courtesy of KIA MOTORS AMERICA, INC.

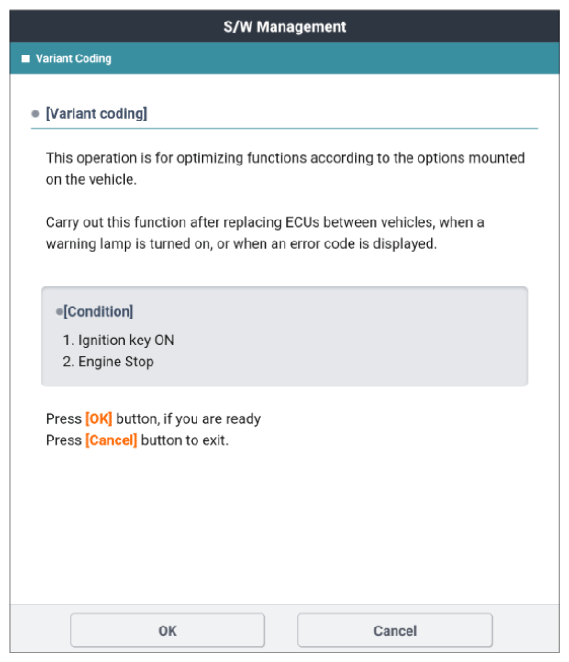

G13485601Courtesy of KIA MOTORS AMERICA, INC.
G13485602Courtesy of KIA MOTORS AMERICA, INC.

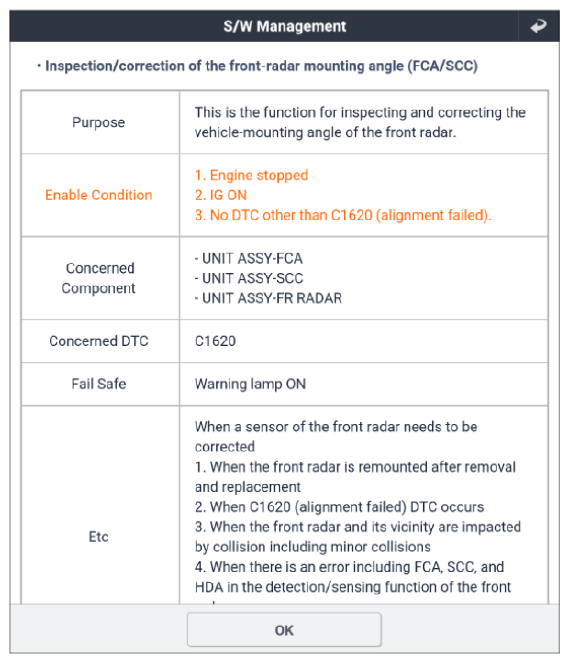

G13485603Courtesy of KIA MOTORS AMERICA, INC.

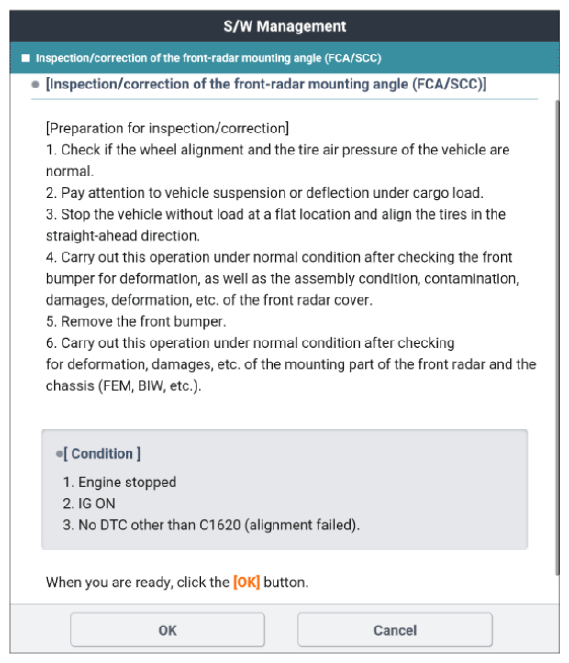

G13485604Courtesy of KIA MOTORS AMERICA, INC.

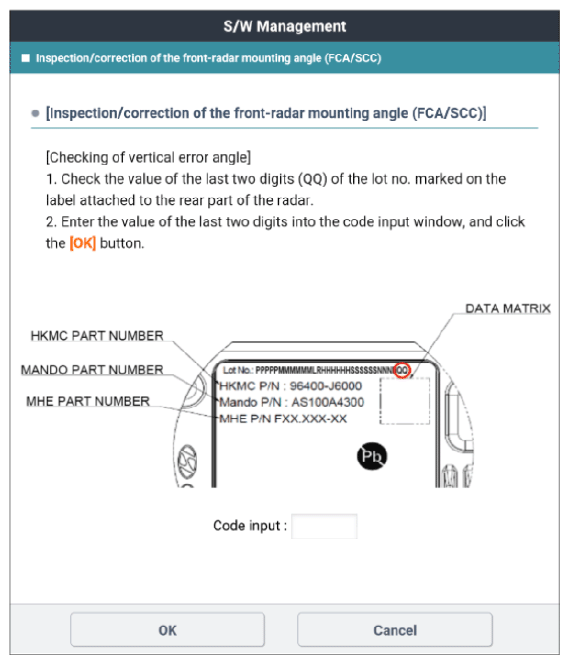

G13485605Courtesy of KIA MOTORS AMERICA, INC.

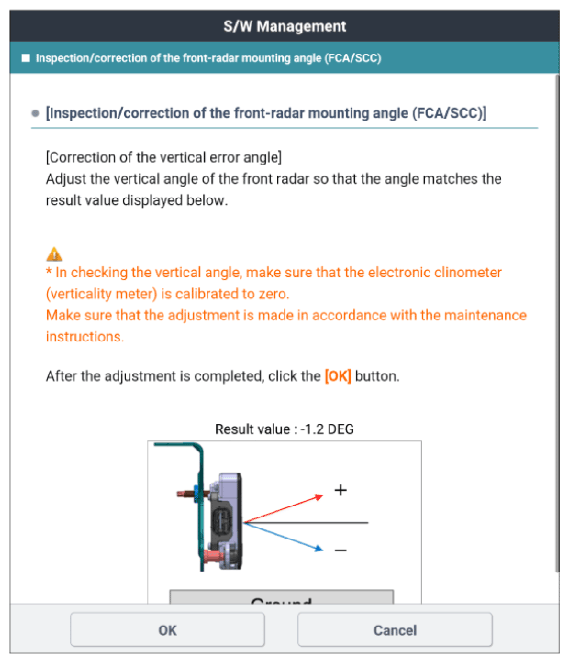

G13485606Courtesy of KIA MOTORS AMERICA, INC.

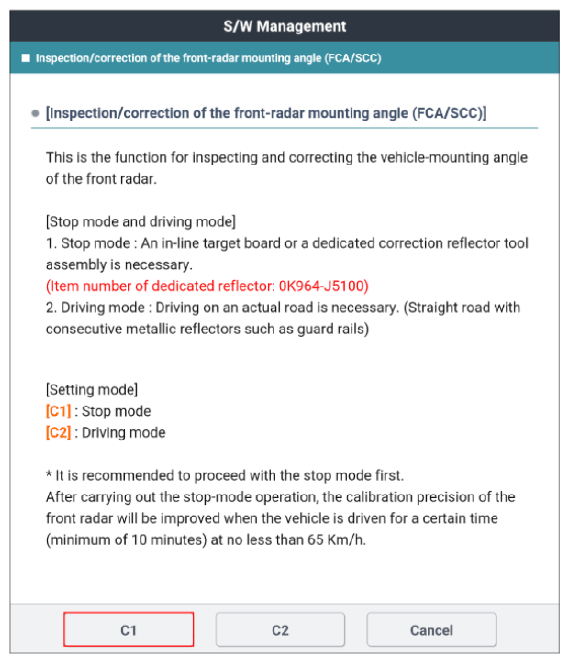

G13485607Courtesy of KIA MOTORS AMERICA, INC.

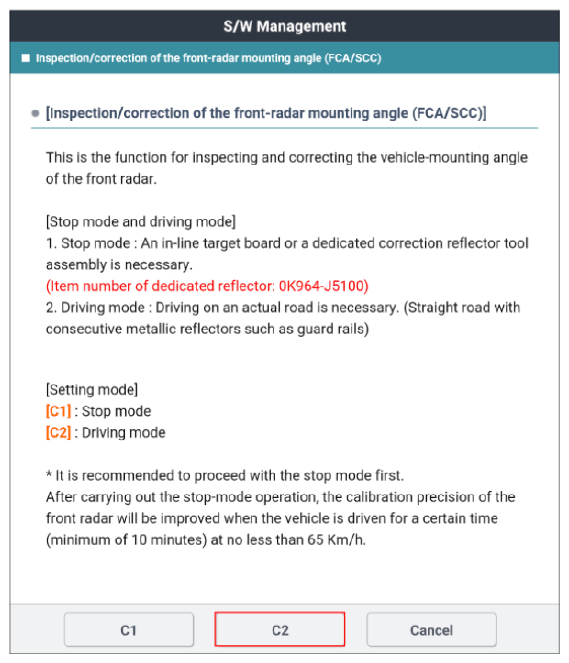

G13485608Courtesy of KIA MOTORS AMERICA, INC.
