Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

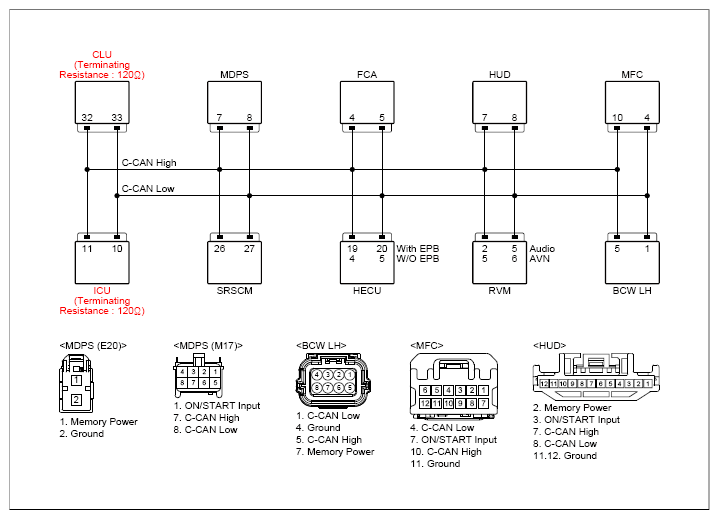

Courtesy of KIA MOTORS AMERICA, INC.

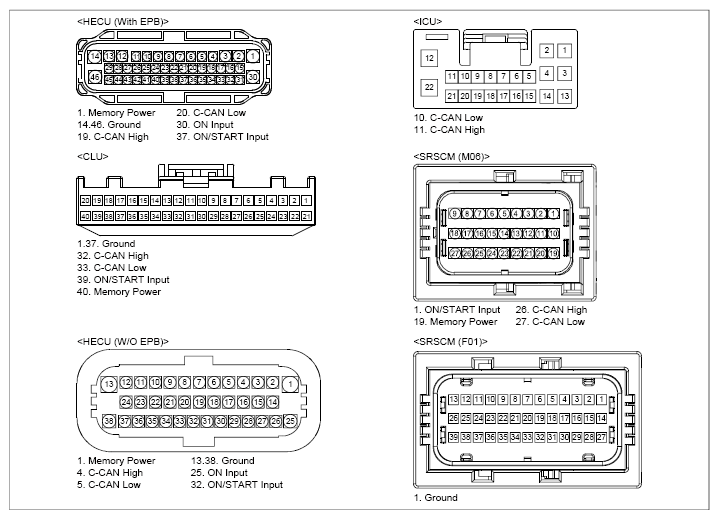

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	MFC connector	7 (ON/START)	Chassis ground	-	B+
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	MFC connector	11 (ground)	Chassis ground	-	Approx. below 1Ω
Ignition "OFF". Disconnect auxiliary battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	MFC connector	10 (C-CAN high)	MFC connector	4 (C-CAN low)	Approx. 60Ω
	MFC connector	10 (C-CAN high)	Chassis ground	-	∞ (Infinity)Ω
	MFC connector	4 (C-CAN low)	Chassis ground	-	∞ (Infinity)Ω
	MFC connector	10 (C-CAN high)	ICU connector	11 (C-CAN high)	Approx. below 1Ω
	MFC connector	4 (C-CAN low)	ICU connector	10 (C-CAN low)	Approx. below 1Ω
Ignition "ON".	MFC connector	10 (C-CAN high)	Chassis ground	-	Fig.1
Ignition "ON".	MFC connector	4 (C-CAN low)	Chassis ground	-	Fig.1

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
