Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

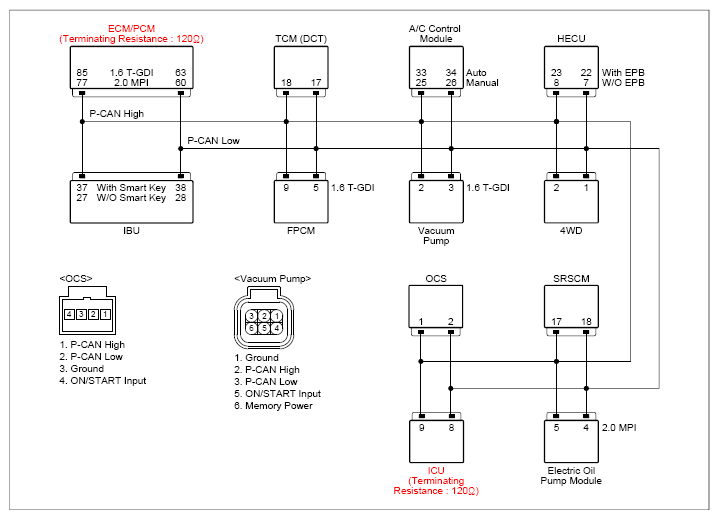

G13494269Courtesy of KIA MOTORS AMERICA, INC.

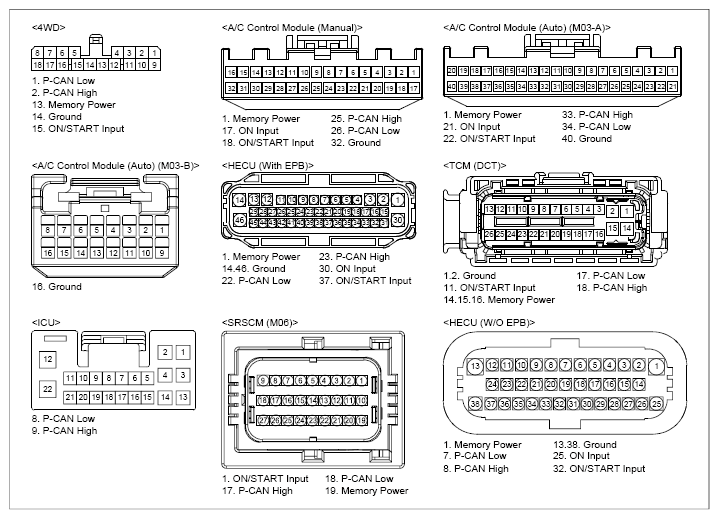

G13494270Courtesy of KIA MOTORS AMERICA, INC.

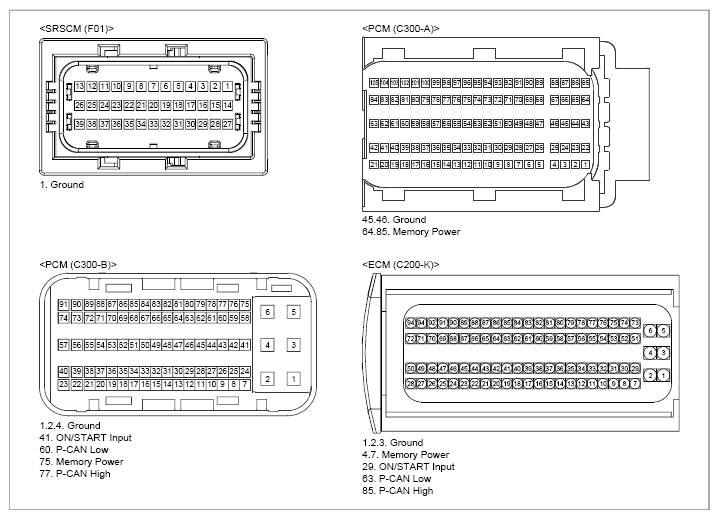

G13494271Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 4WD connector 13 (Memory power) Chassis ground - B+
4WD connector 15 (ON/START) Chassis ground - B+
  1. Ignition "OFF".
  2. Disconnect battery (-) cable.
  3. Disconnect the electrical connector(s) from the concerned component.
 4WD connector 14 (ground) Chassis ground - Approx. below 1Ω
4WD connector 2 (P-CAN high) 4WD connector 1 (P-CAN low) Approx. 60Ω
4WD connector 2 (P-CAN high) Chassis ground - ∞ (infinity)Ω
4WD connector 1 (P-CAN low) Chassis ground - ∞ (infinity)Ω
4WD connector 2 (P-CAN high) ICU connector 9 (P-CAN high) Approx. below 1Ω
4WD connector 1 (P-CAN low) ICU connector 8 (P-CAN low) Approx. below 1Ω
  1. Ignition "ON".
 4WD connector 2 (P-CAN high) Chassis ground - Fig.1
4WD connector 1 (P-CAN low) Chassis ground -
G13494272Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
