Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

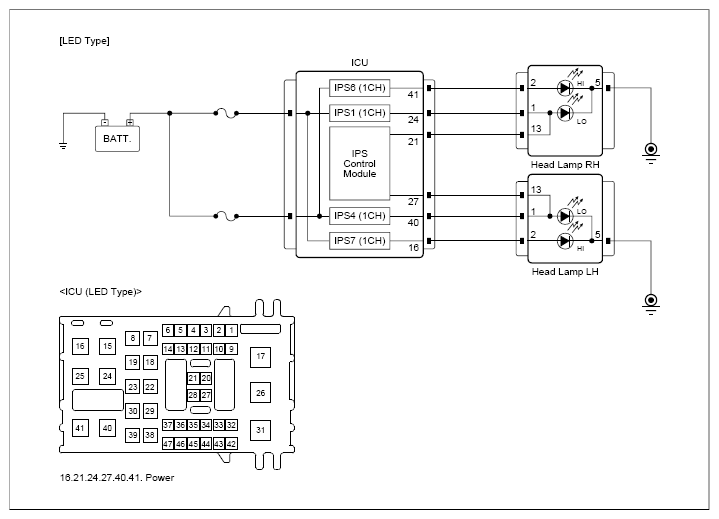

ICU connector (LED type) | 41 (power) | Chassis ground | - | ∞ (infinity)Ω |

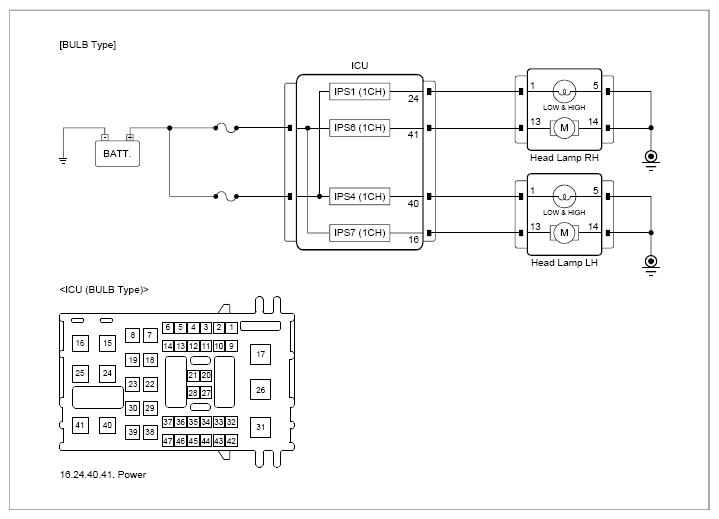

| ICU connector (BULB type) | 24 (power) | Chassis ground | - | ∞ (infinity)Ω | |
Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the LED or lamp module and go to "VERIFICATION OF REPAIR " procedure. (LED type)
- If no problems were found with the circuits or connectors, replace the bulb or lamp module and go to "VERIFICATION OF REPAIR " procedure. (BULB type)
No Good
- Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
ICU connector (LED type) | 16 (power) | Chassis ground | - | ∞ (infinity)Ω |
|
ICU connector (BULB type) | 40 (power) | Chassis ground | - | ∞ (infinity)Ω |
Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the LED or lamp module and go to "VERIFICATION OF REPAIR " procedure. (LED type)
- If no problems were found with the circuits or connectors, replace the bulb or lamp module and go to "VERIFICATION OF REPAIR " procedure. (BULB type)
No Good
- Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
