Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

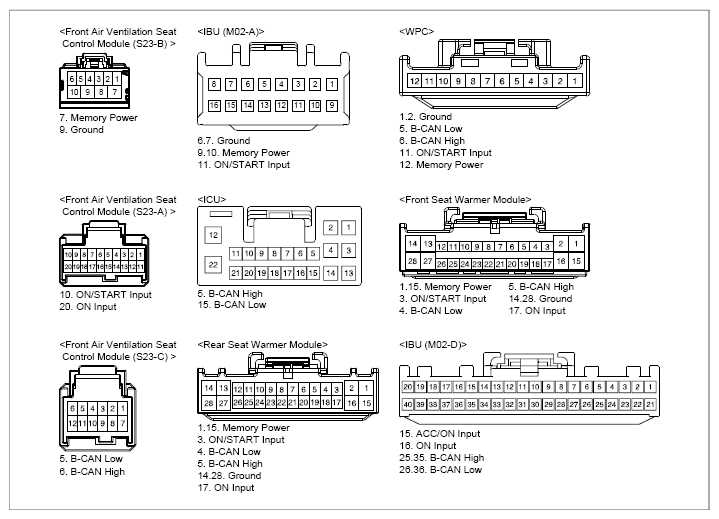

IBU connector | 9, 10 (Memory power) | Chassis ground | - | B+ |
| IBU connector | 15 (ACC/ON Input) | Chassis ground | - | B+ | |
| IBU connector | 16 (ON Input) | Chassis ground | - | B+ | |
| IBU connector | 11 (ON/START Input) | Chassis ground | - | B+ | |
|
IBU connector | 6, 7 (ground) | Chassis ground | - | Approx. below 1Ω |
|

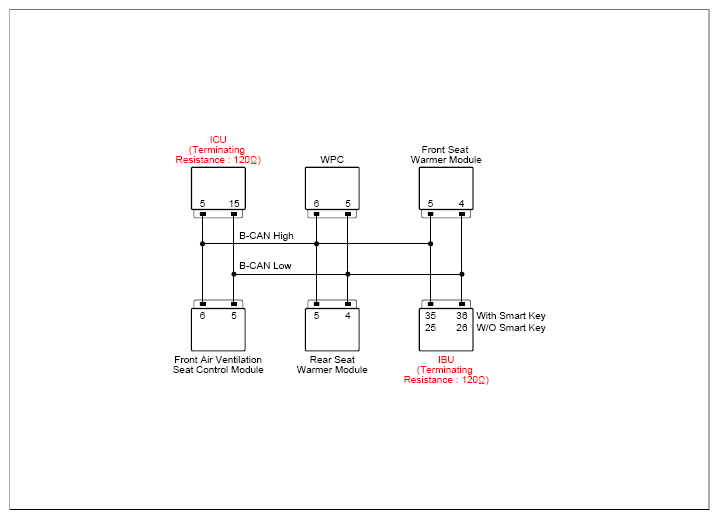

IBU connector (with SMK) (component side) | 35 (B-CAN high) | IBU connector (with SMK) (component side) | 36 (B-CAN low) | Approx. 120Ω |
| IBU connector (W/O SMK) (component side) | 25 (B-CAN high) | IBU connector (W/O SMK) (component side) | 26 (B-CAN low) | Approx. 120Ω | |
| ICU connector (component side) | 5 (B-CAN high) | ICU connector (component side) | 15 (B-CAN low) | Approx. 120Ω | |
| IBU connector (with SMK) | 35 (B-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| IBU connector (with SMK) | 36 (B-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
| IBU connector (W/O SMK) | 25 (B-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| IBU connector (W/O SMK) | 26 (B-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
| IBU connector (with SMK) | 35 (B-CAN high) | ICU connector | 5 (B-CAN high) | Approx. below 1Ω | |
| IBU connector (with SMK) | 36 (B-CAN low) | ICU connector | 15 (B-CAN low) | Approx. below 1Ω | |
| IBU connector (W/O SMK) | 25 (B-CAN high) | ICU connector | 5 (B-CAN high) | Approx. below 1Ω | |
| IBU connector (W/O SMK) | 26 (B-CAN low) | ICU connector | 15 (B-CAN low) | Approx. below 1Ω | |
|

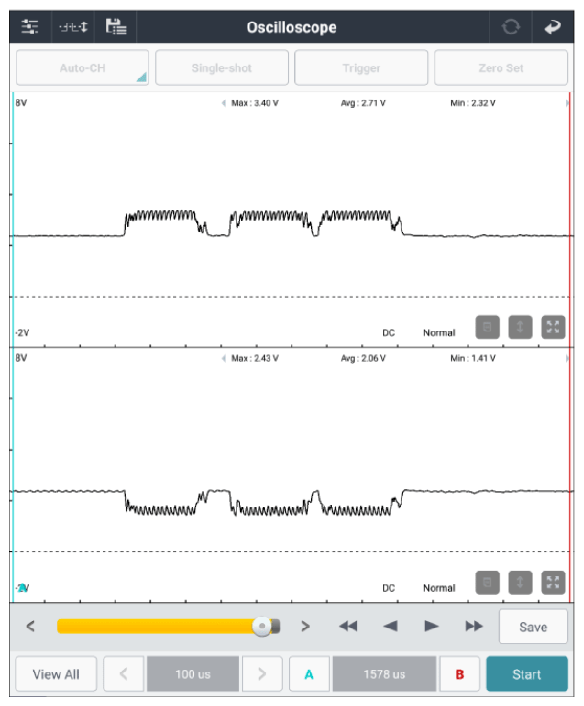

IBU connector (with SMK) | 35 (B-CAN high) | Chassis ground | - | Fig.1 |
| IBU connector (with SMK) | 36 (B-CAN low) | Chassis ground | - | ||
|
IBU connector (W/O SMK) | 25 (B-CAN high) | Chassis ground | - | Fig.1 |
| IBU connector (W/O SMK) | 26 (B-CAN low) | Chassis ground | - | ||
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
No Good
- Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
- If no problems were found with the circuits or connectors, go to "COMPONENT INSPECTION " procedure.
