Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
ODS connector | 4 (ON/START) | Chassis ground | - | B+ |
|
ODS connector | 3 (ground) | Chassis ground | - | Approx. below 1Ω |

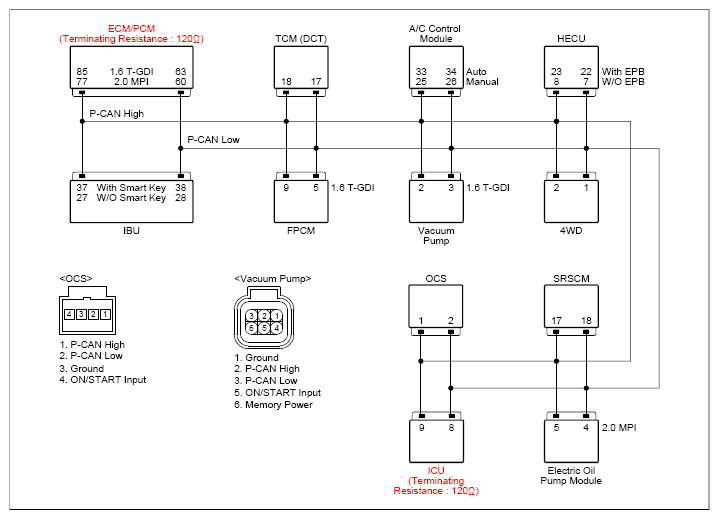

| ODS connector | 1 (P-CAN high) | ODS connector | 2 (P-CAN low) | Approx. 60Ω | |
| ODS connector | 1 (P-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| ODS connector | 2 (P-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |

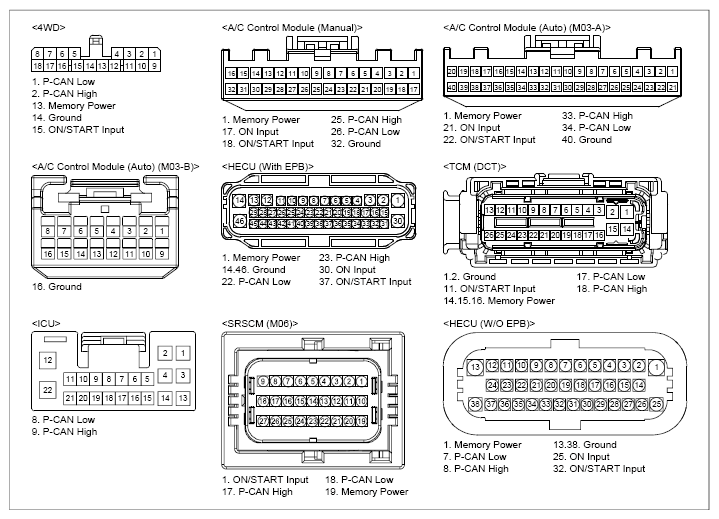

| ODS connector | 1 (P-CAN high) | ICU connector | 9 (P-CAN high) | Approx. below 1Ω | |
| ODS connector | 2 (P-CAN low) | ICU connector | 8 (P-CAN low) | Approx. below 1Ω | |
|

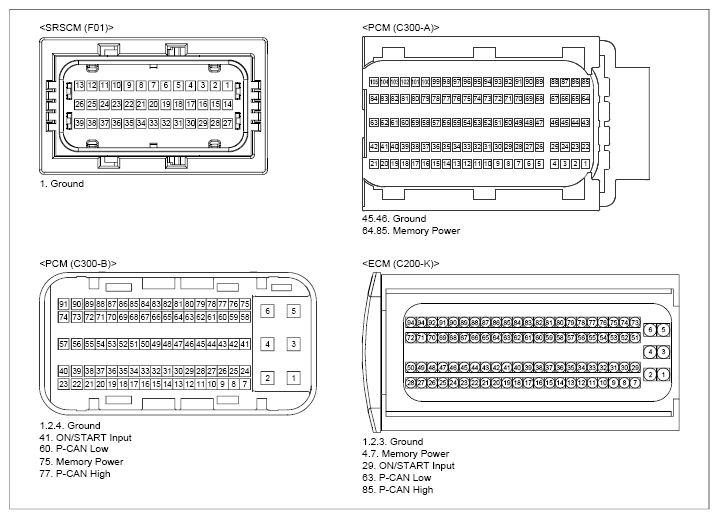

ODS connector | 1 (P-CAN high) | Chassis ground | - | Fig.1 |
| ODS connector | 2 (P-CAN low) | Chassis ground | - | ||
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
