Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

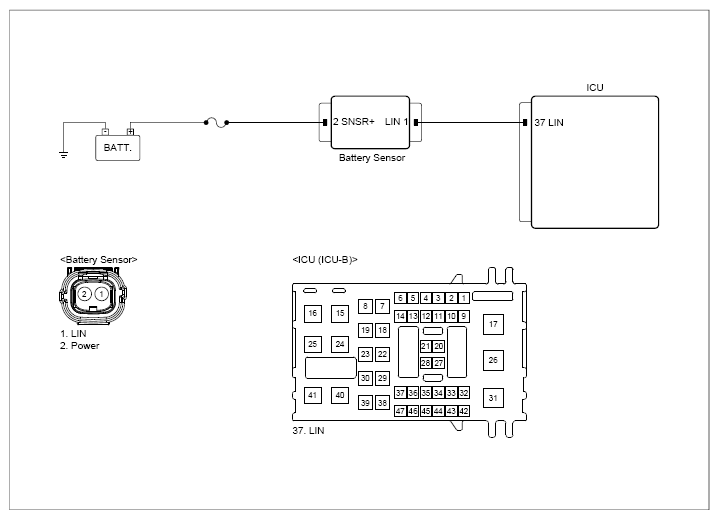

G13494018

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Battery sensor connector	2 (power)	Chassis ground	-	B+
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	Battery sensor connector	1 (LIN)	ICU connector	37 (LIN)	Approx. below 10
	Battery sensor connector	1 (LIN)	Chassis ground	-	∞ (Infinity)Ω
Engine "ON".	Battery sensor connector	2 (power)	Chassis ground	-	Fig.1
Engine "ON".	Battery sensor connector	1 (LIN)	Chassis ground	-	Fig.1

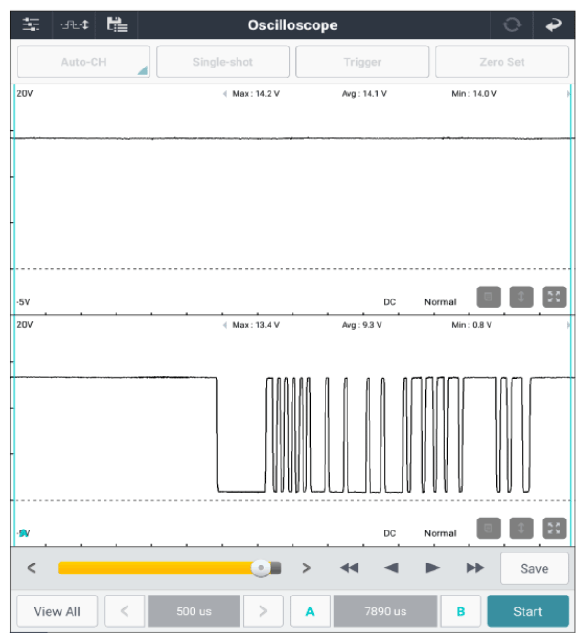

G13494019

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
