Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

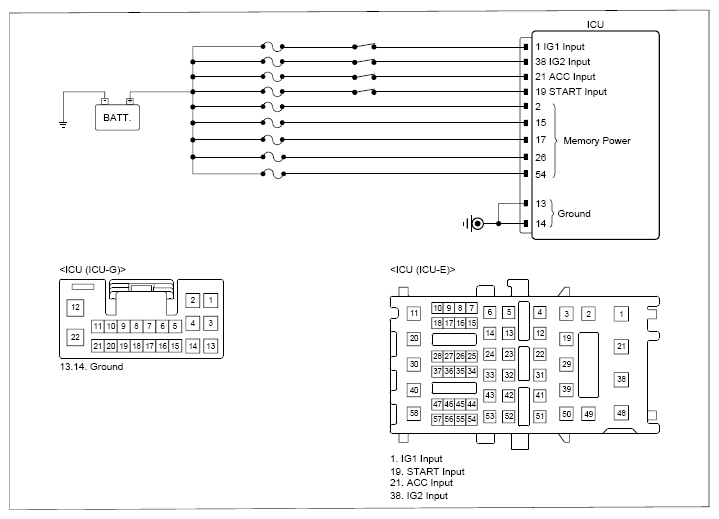

G13494014Courtesy of KIA MOTORS AMERICA, INC.

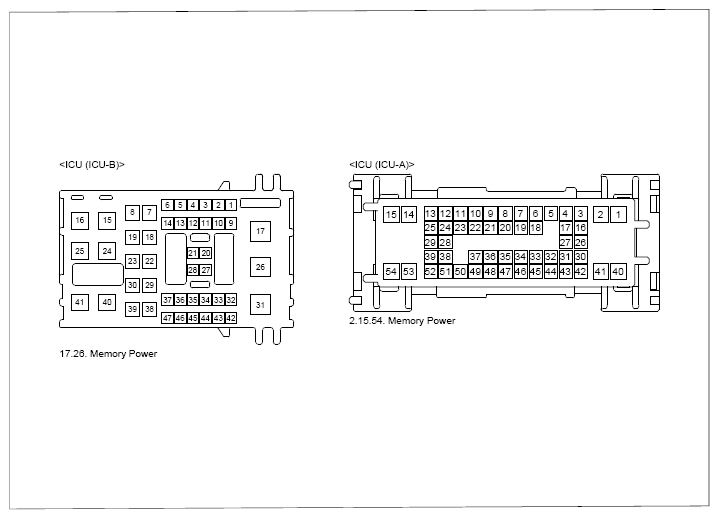

G13494015Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 ICU 2, 15, 17, 26, 54 (Memory power) Chassis ground - B+
  1. Ignition "OFF".
  2. Disconnect battery (-) cable.
  3. Disconnect the electrical connector(s) from the concerned component.
 ICU 13, 14 (ground) Chassis ground - Approx. below 1Ω

Good

No Good
