Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. BCW radar calibration.
  2. Ignition "ON".
  1. Connect KDS/GDS to "Data Link Connector (DLC)".
  2. Select "Vehicle S/W Management" with KDS.
  3. Select "BCW Radar Calibration" under "Vehicle S/W Management".
 Fig.1 to 6

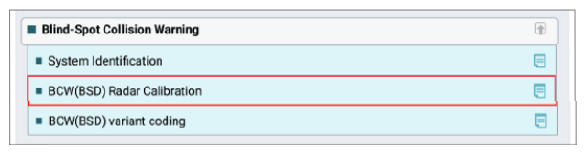

G13492165Courtesy of KIA MOTORS AMERICA, INC.

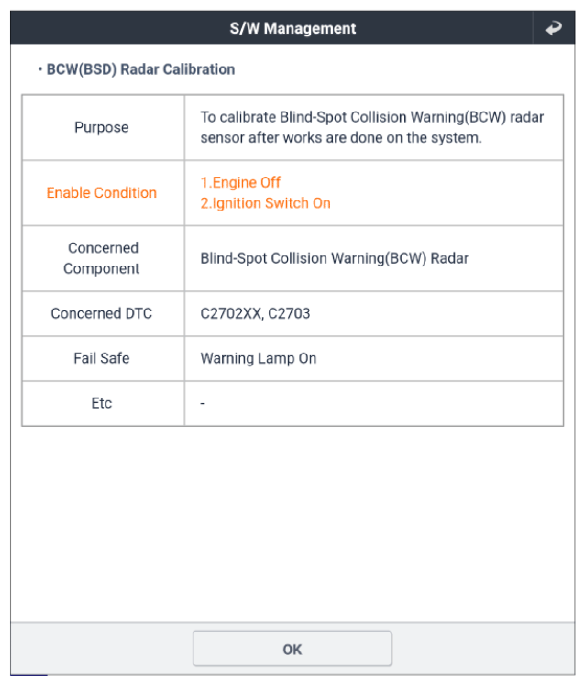

G13492166Courtesy of KIA MOTORS AMERICA, INC.

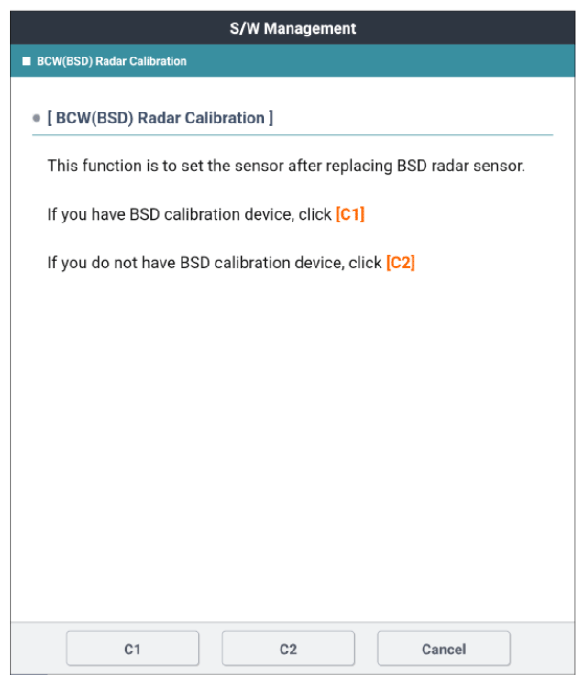

G13492167Courtesy of KIA MOTORS AMERICA, INC.

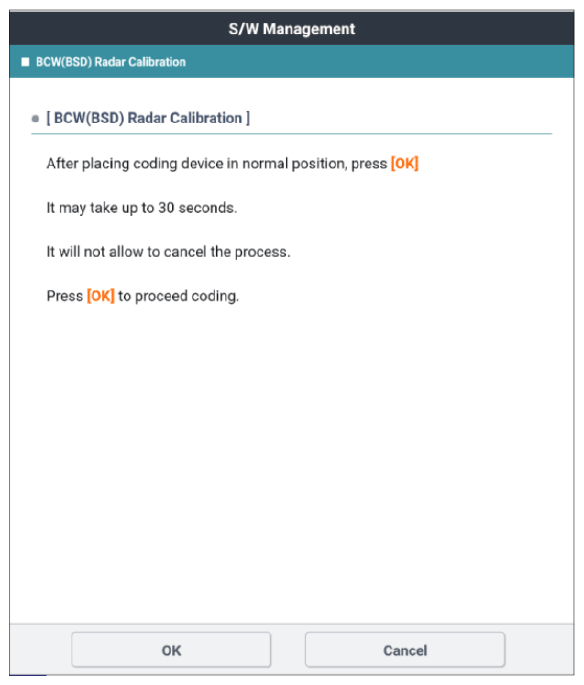

G13492168Courtesy of KIA MOTORS AMERICA, INC.

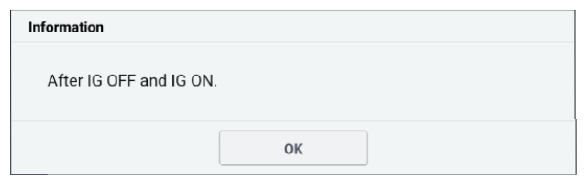

G13492169Courtesy of KIA MOTORS AMERICA, INC.

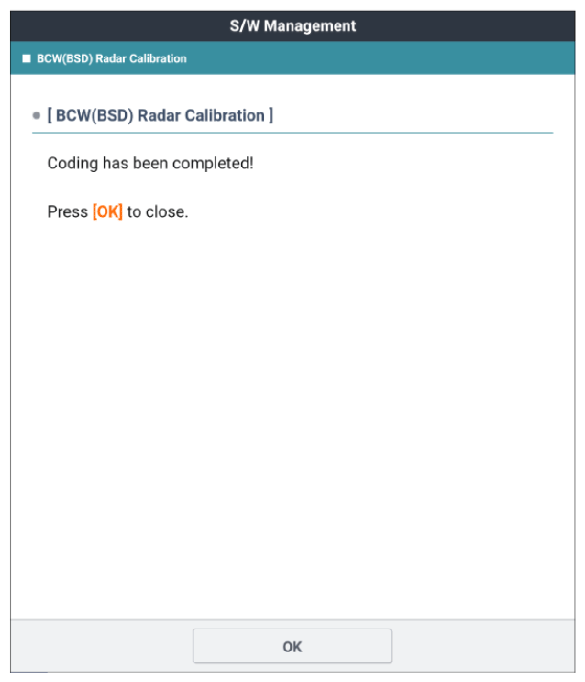

G13492170Courtesy of KIA MOTORS AMERICA, INC.
