Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. BCW radar calibration.
  2. Ignition "ON".
  1. Connect KDS/GDS to "Data Link Connector (DLC)".
  2. Select "Vehicle S/W Management" with KDS.
  3. Select "BCW Radar Calibration" under "Vehicle S/W Management".
 Fig.1 to 6

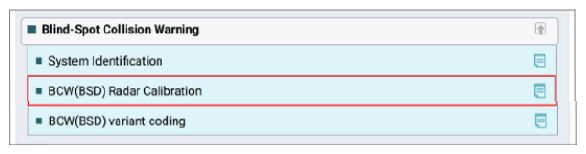

G13492157Courtesy of KIA MOTORS AMERICA, INC.

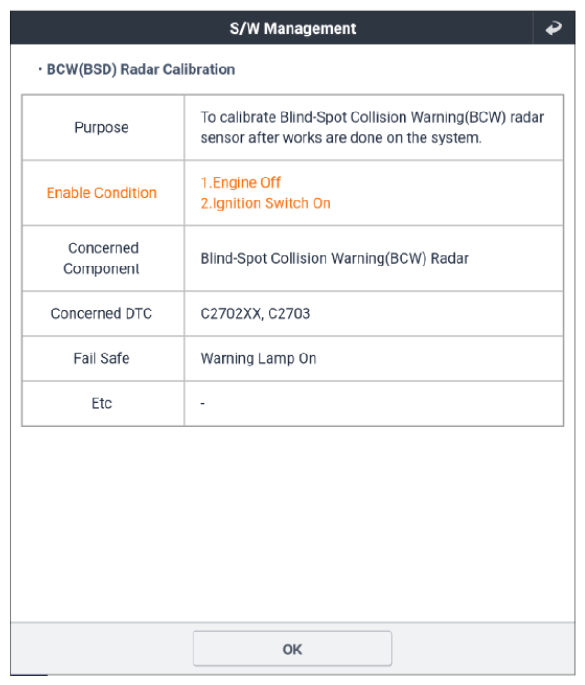

G13492158Courtesy of KIA MOTORS AMERICA, INC.

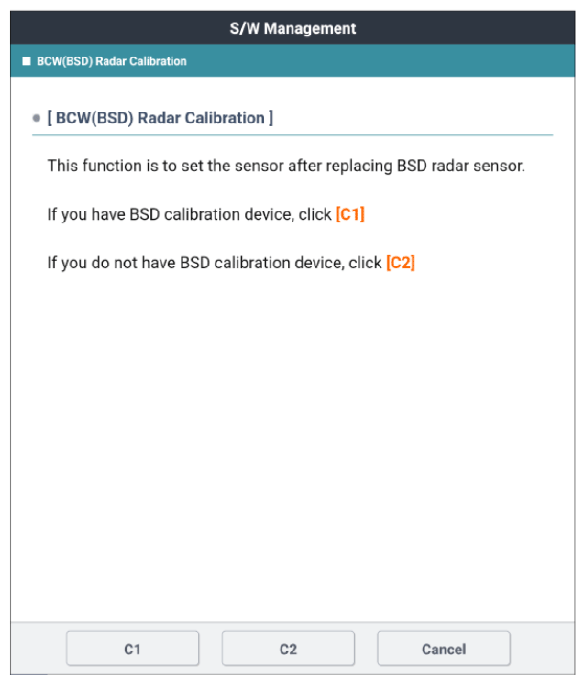

G13492159Courtesy of KIA MOTORS AMERICA, INC.

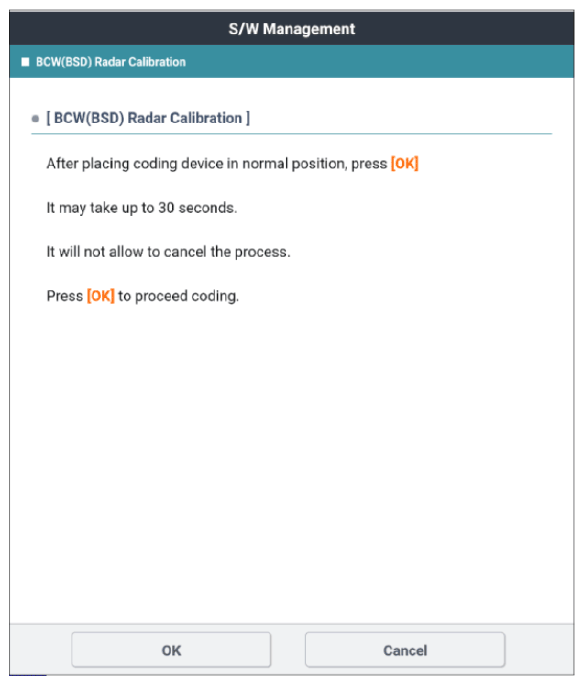

G13492160Courtesy of KIA MOTORS AMERICA, INC.

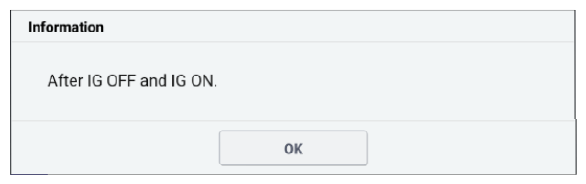

G13492161Courtesy of KIA MOTORS AMERICA, INC.

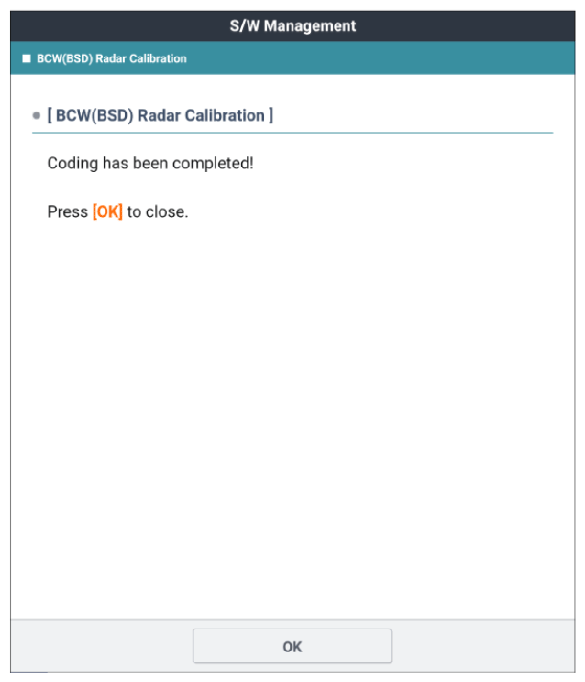

G13492162Courtesy of KIA MOTORS AMERICA, INC.
