Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. BCW radar calibration.
  2. Ignition "ON".
  1. Connect KDS/GDS to "Data Link Connector (DLC)".
  2. Select "Vehicle S/W Management" with KDS.
  3. Select "BCW Radar Calibration" under "Vehicle S/W Management".
 Fig.1 to 6

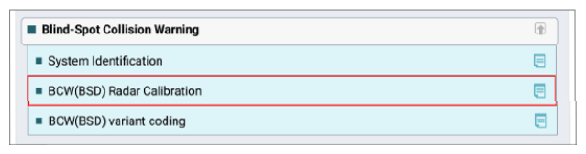

G13492149Courtesy of KIA MOTORS AMERICA, INC.

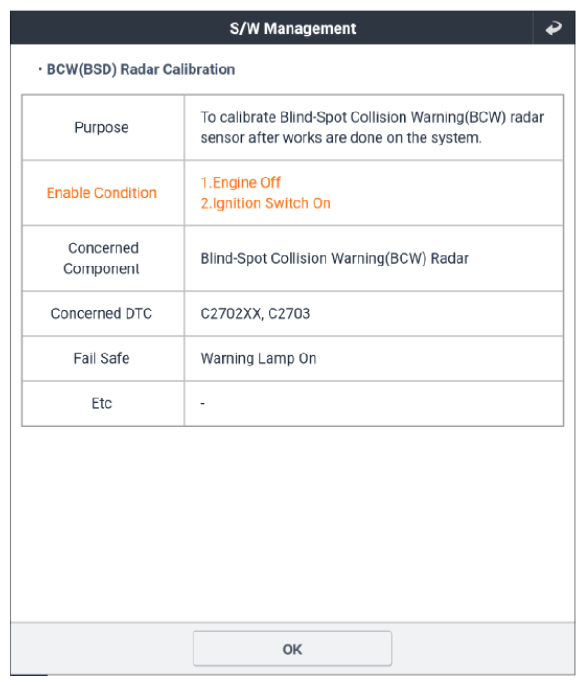

G13492150Courtesy of KIA MOTORS AMERICA, INC.

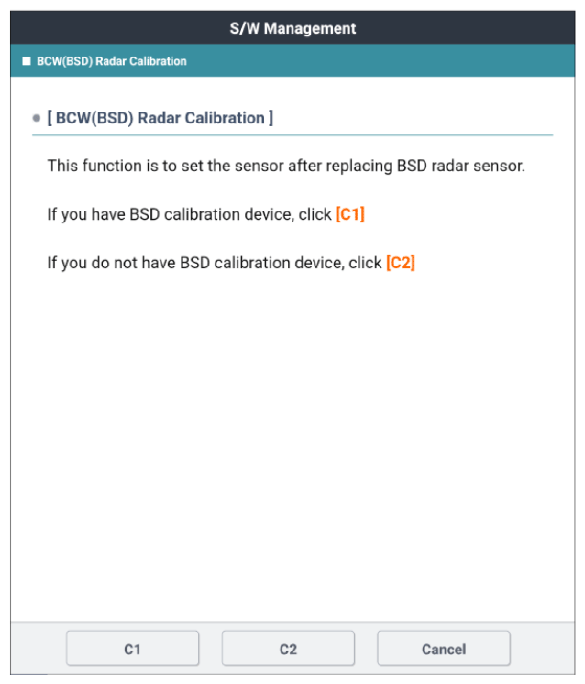

G13492151Courtesy of KIA MOTORS AMERICA, INC.

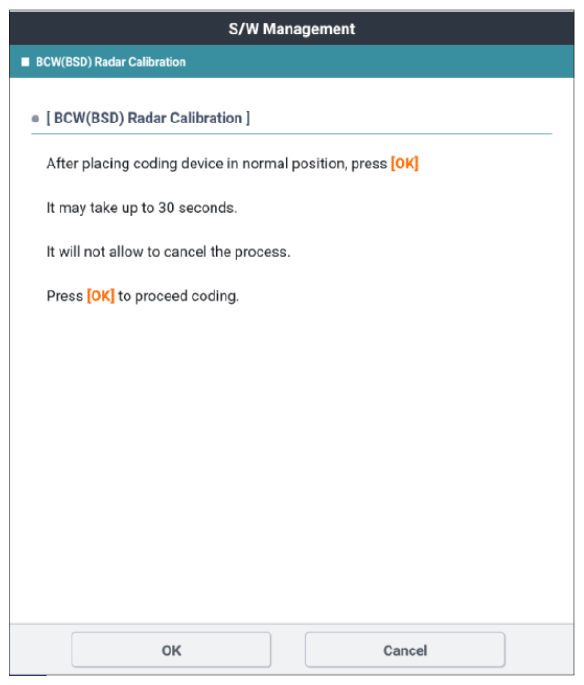

G13492152Courtesy of KIA MOTORS AMERICA, INC.

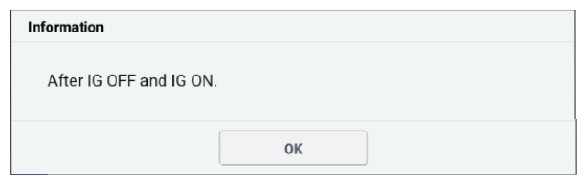

G13492153Courtesy of KIA MOTORS AMERICA, INC.

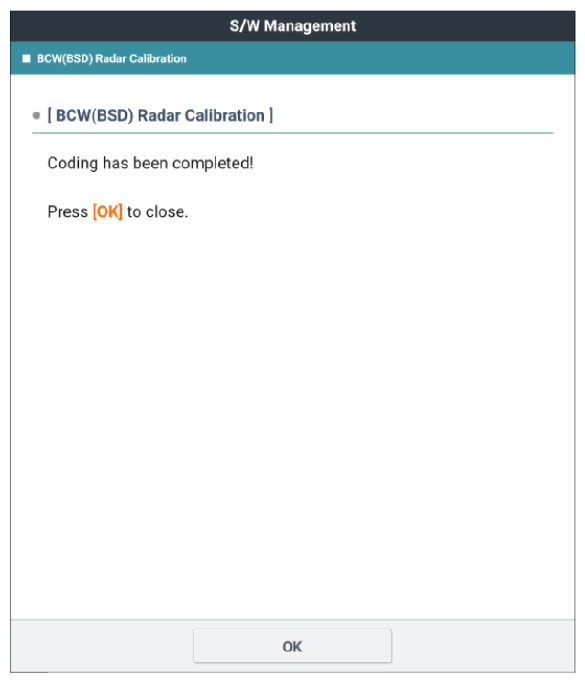

G13492154Courtesy of KIA MOTORS AMERICA, INC.
