Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. BCW radar calibration.
  2. Ignition "ON".
  1. Connect KDS/GDS to "Data Link Connector (DLC)".
  2. Select "Vehicle S/W Management" with KDS.
  3. Select "BCW (BSD) variant coding" under "Vehicle S/W Management".
 Fig.1 to 6

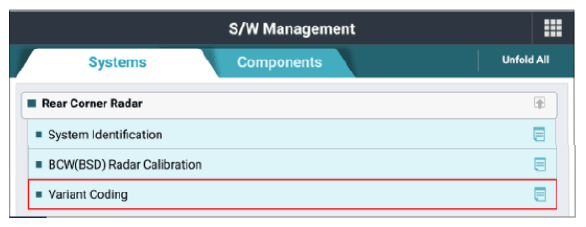

G13492104Courtesy of KIA MOTORS AMERICA, INC.

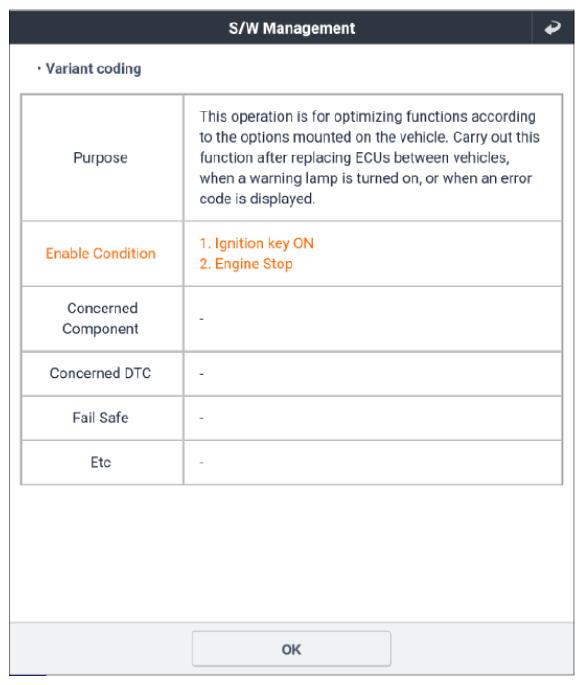

G13492105Courtesy of KIA MOTORS AMERICA, INC.

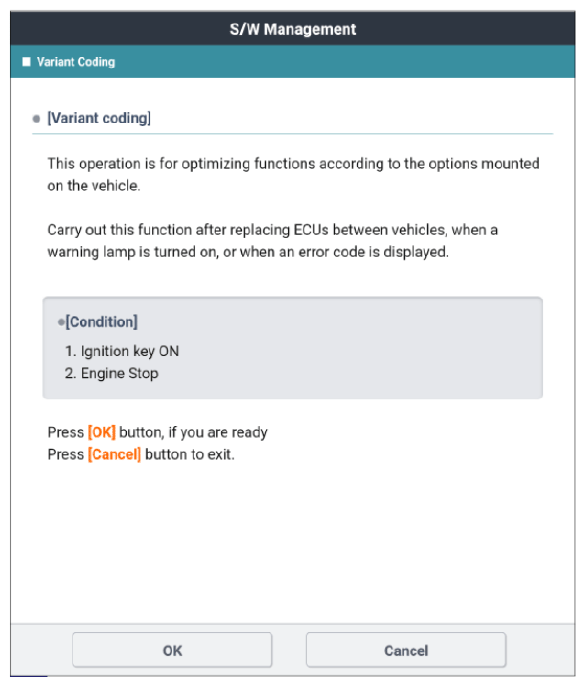

G13492106Courtesy of KIA MOTORS AMERICA, INC.

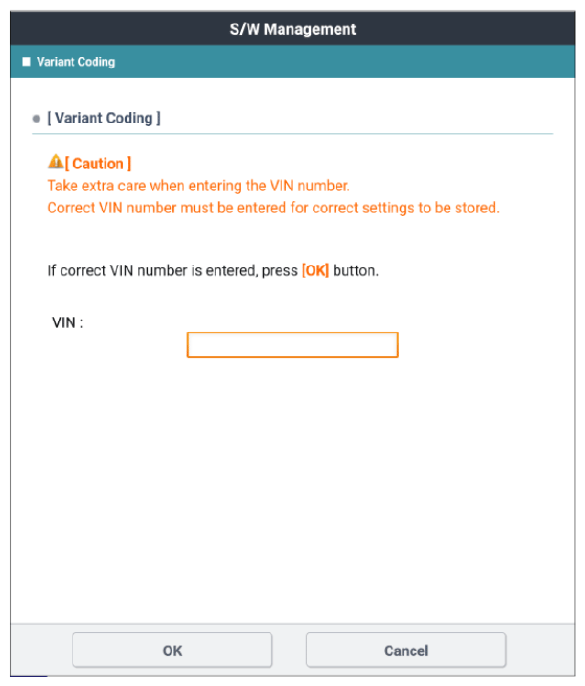

G13492107Courtesy of KIA MOTORS AMERICA, INC.

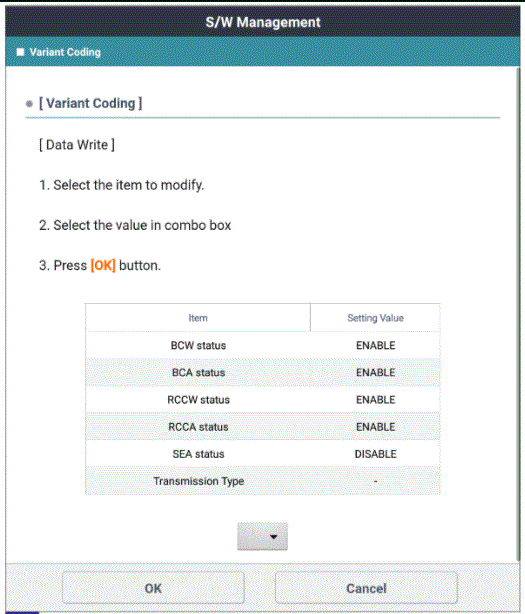

G13492108Courtesy of KIA MOTORS AMERICA, INC.

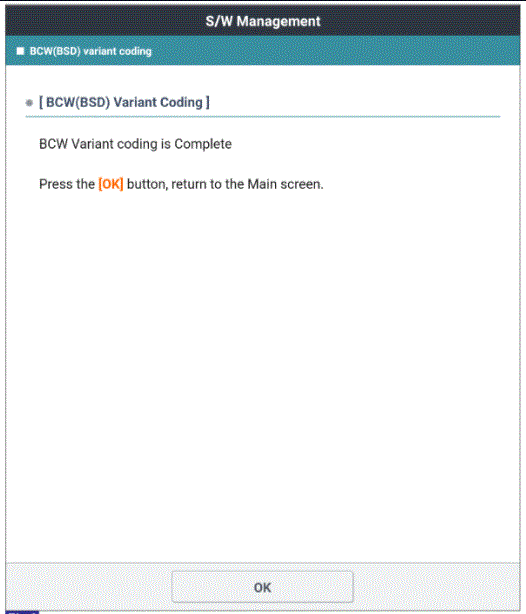

G13492109Courtesy of KIA MOTORS AMERICA, INC.
