Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

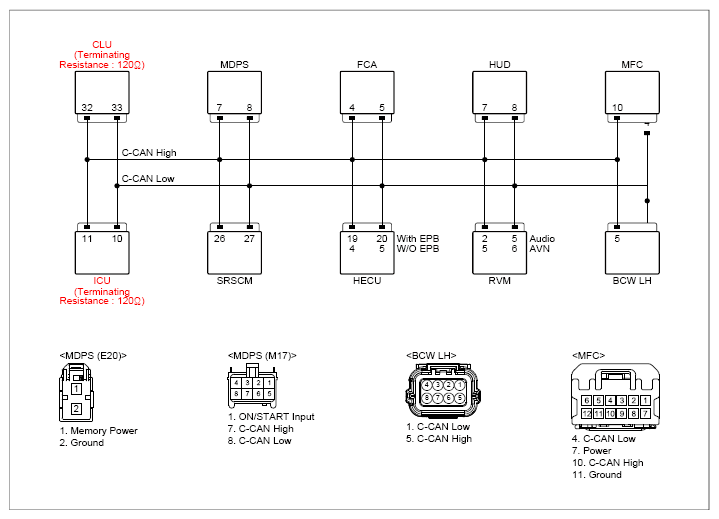

G13492031Courtesy of KIA MOTORS AMERICA, INC.

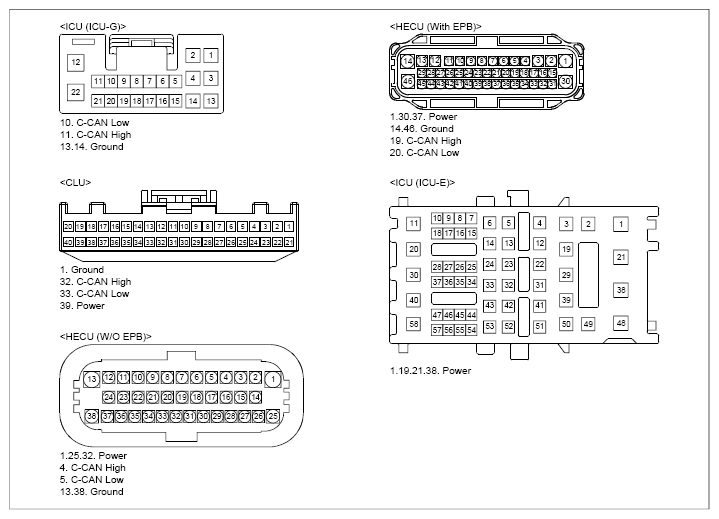

G13492032Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Connect the electrical connector(s) from the concerned component.
  2. Ignition "ON".
 ICU connector 11 (C-CAN high) Chassis ground - Fig.1
ICU connector 10 (C-CAN low) Chassis ground -
  1. Ignition "OFF" and disconnect the battery.
  2. Wait about four minutes.
  3. Disconnect the electrical connector(s) from the concerned component.
 BCW radar (LH) connector 5 (C-CAN high) BCW radar (LH) connector 1 (C-CAN low) Approx. 60Ω
G13492033Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
