Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

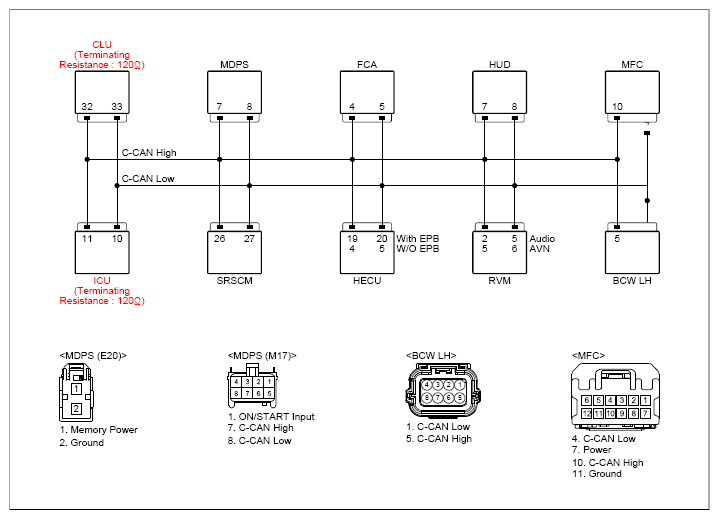

G13492023Courtesy of KIA MOTORS AMERICA, INC.

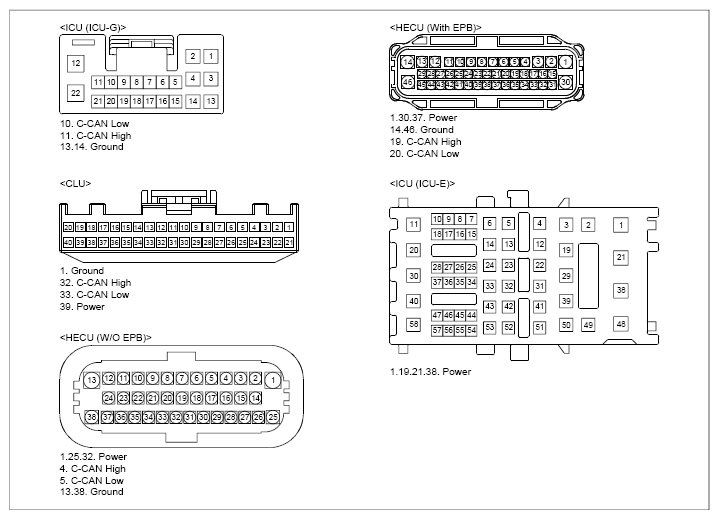

G13492024Courtesy of KIA MOTORS AMERICA, INC.

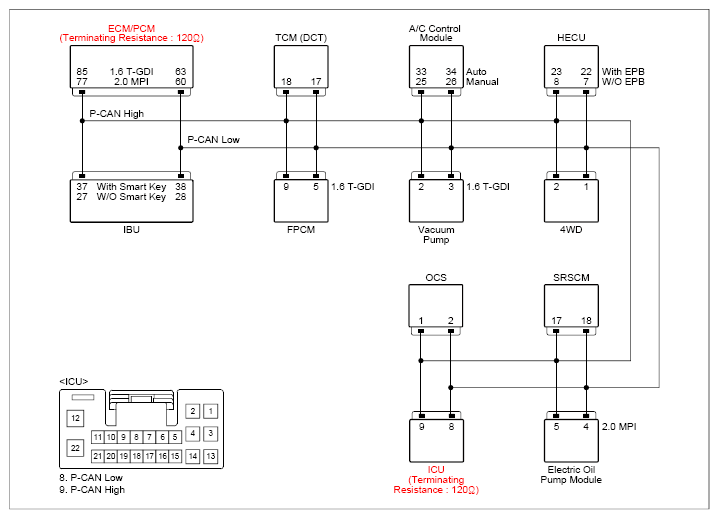

G13492025Courtesy of KIA MOTORS AMERICA, INC.

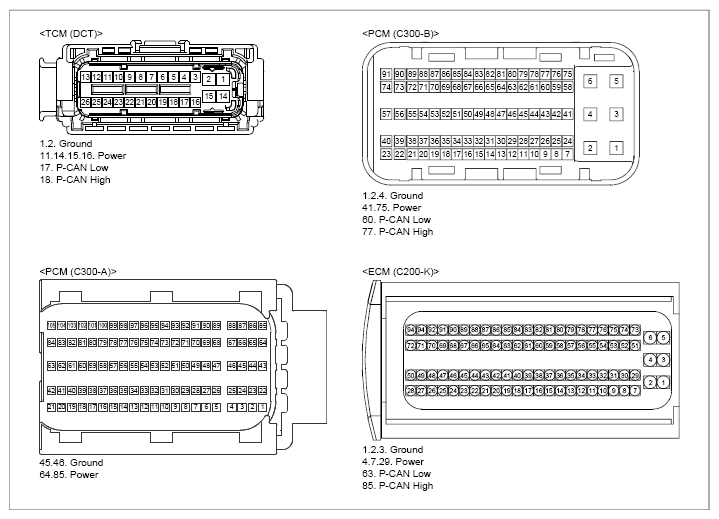

G13492026Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Disconnect the electrical connector(s) from the concerned component.
  2. Ignition "ON".
ECM connector (1.6 MPI M/T) 18, 48 (power) Chassis ground - B+
PCM connector (1.6 MPI A/T) 33, 45, 48, 74 (power) Chassis ground - B+
ECM connector (1.6 TGDI) 4, 7, 29 (power) Chassis ground - B+
PCM connector (2.0 MPI) 41, 75 (power) Chassis ground - B+
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
ECM connector (1.6 MPI M/T) 33, 50, 52 (ground) Chassis ground - Approx. below 1Ω
PCM connector (1.6 MPI A/T) 2, 3, 4 (ground) Chassis ground - Approx. below 1Ω
ECM connector (1.6 TGDI) 1, 2, 3 (ground) Chassis ground - Approx. below 1Ω
PCM connector (2.0 MPI) 1, 2, 4 (ground) Chassis ground - Approx. below 1Ω
  1. Connect the electrical connector(s) from the concerned component.
  2. Ignition "ON".
ICU connector 11 (C-CAN high) Chassis ground - Fig.1
ICU connector 10 (C-CAN low) Chassis ground -
ICU connector 9 (P-CAN high) Chassis ground - Fig.2
ICU connector 8 (P-CAN low) Chassis ground -

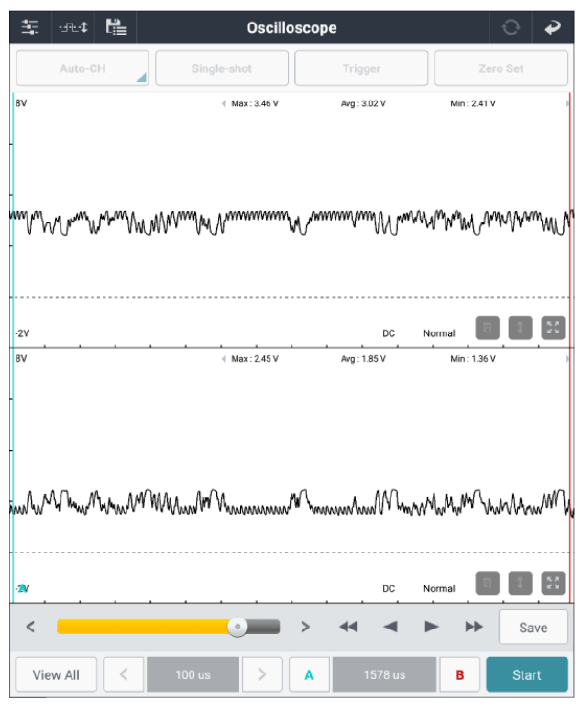

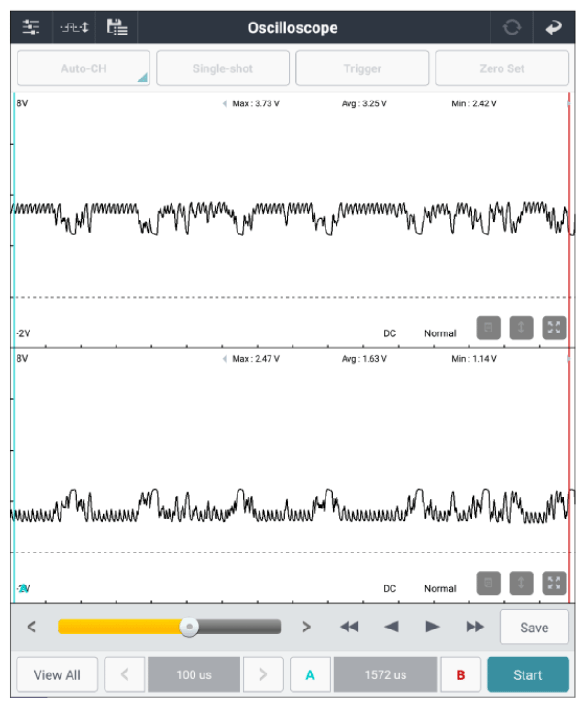

G13492027Courtesy of KIA MOTORS AMERICA, INC.
G13492028Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

CAN Communication Line Inspection
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF" and disconnect the battery.
  2. Disconnect the electrical connector(s) from the concerned component.
BCW radar (LH) connector 5 (C-CAN high) BCW radar (LH) connector 1 (C-CAN low) Approx. 60Ω
ICU (component side) 11 (C-CAN high) ICU (component side) 10 (C-CAN low) Approx. 120Ω
BCW radar (LH) connector 5 (C-CAN high) ICU connector 11 (C-CAN high) Approx. below 1Ω
BCW radar (LH) connector 1 (C-CAN low) ICU connector 10 (C-CAN low) Approx. below 1Ω
ICU connector 9 (P-CAN high) ICU connector 8 (P-CAN low) Approx. 60Ω
ICU connector 9 (P-CAN high) ECM connector (1.6 MPI M/T) 41 (P-CAN high) Approx. below 1Ω
ICU connector 8 (P-CAN low) ECM connector (1.6 MPI M/T) 29 (P-CAN low) Approx. below 1Ω
ICU connector 9 (P-CAN high) PCM connector (1.6 MPI A/T) 60 (P-CAN high) Approx. below 1Ω
ICU connector 8 (P-CAN low) PCM connector (1.6 MPI A/T) 82 (P-CAN low) Approx. below 1Ω
ICU connector 9 (P-CAN high) ECM connector (1.6 TGDI) 82 (P-CAN low) Approx. below 1Ω
ICU connector 8 (P-CAN low) ECM connector (1.6 TGDI) 63 (P-CAN low)
ICU connector 9 (P-CAN high) PCM connector (2.0 MPI) 77 (P-CAN high)
ICU connector 8 (P-CAN low) PCM connector (2.0 MPI) 60 (P-CAN low)

Good

No Good
