System Inpection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
 1. Connect KDS/GDS to Data Link Connector (DLC)
2. Perform "Vehicle S/W Management" of concerned component with KDS		 Fig. 1 to 5

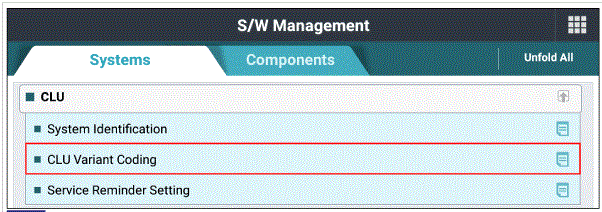

G00614869Courtesy of KIA MOTORS AMERICA, INC.

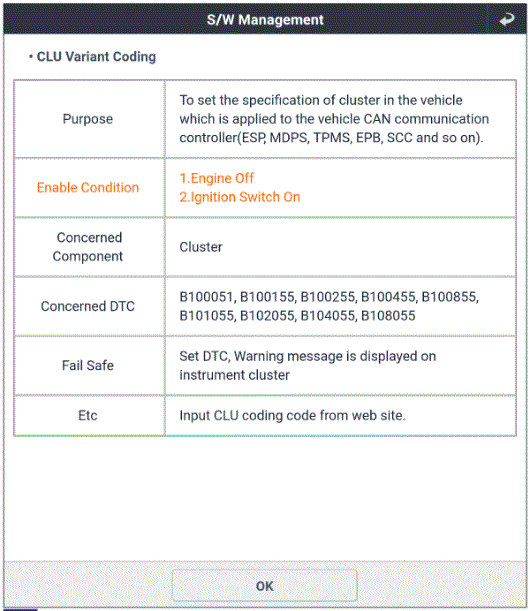

G00614870Courtesy of KIA MOTORS AMERICA, INC.

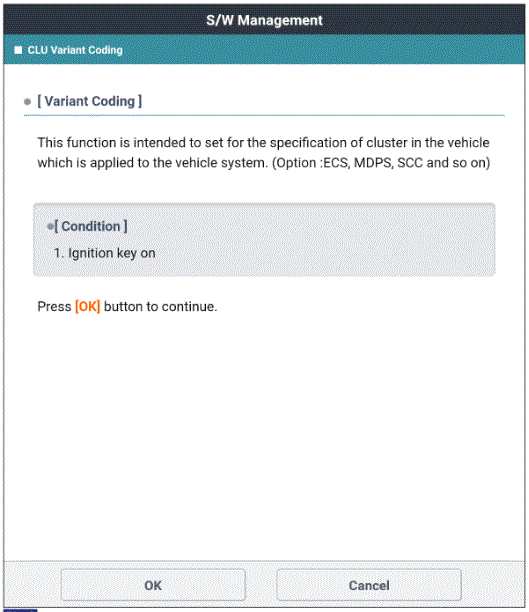

G00614871Courtesy of KIA MOTORS AMERICA, INC.

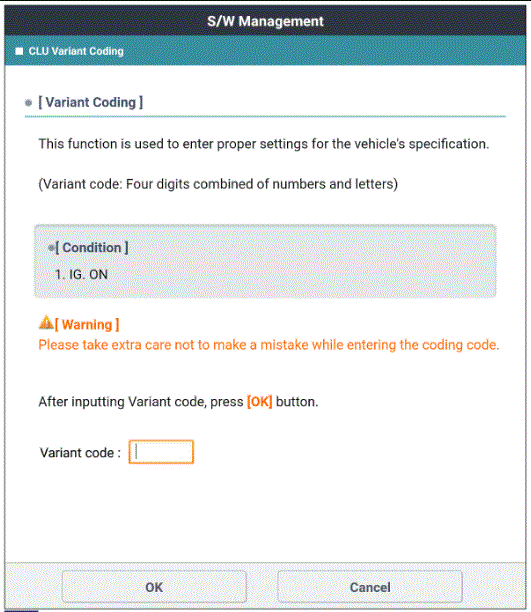

G00614872Courtesy of KIA MOTORS AMERICA, INC.

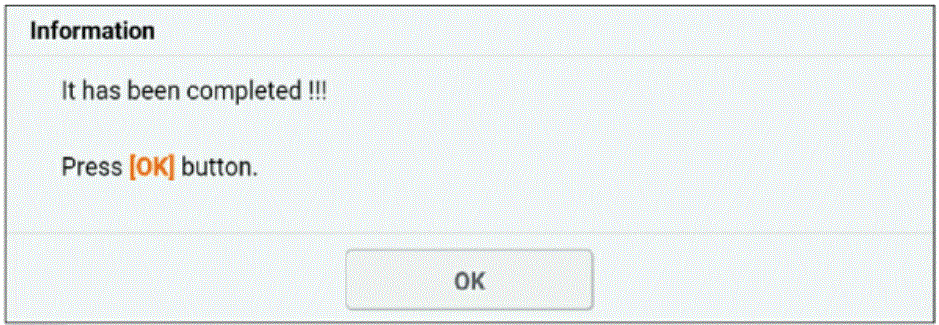

G00614873Courtesy of KIA MOTORS AMERICA, INC.
