Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Prove | (-) Prove | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

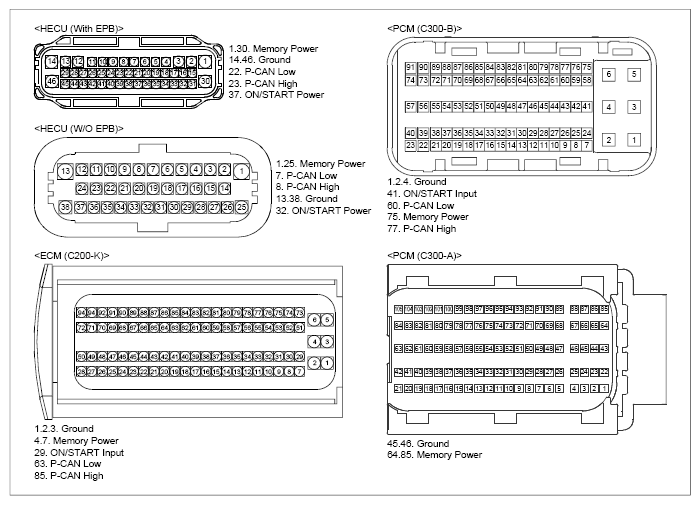

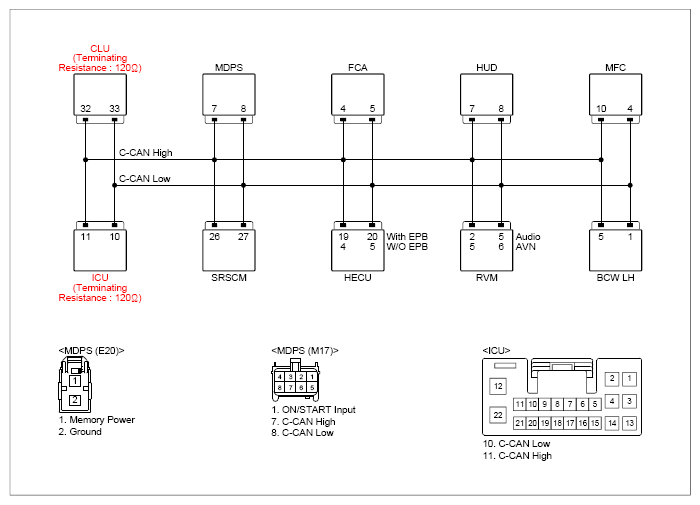

MDPS connector | 7 (C-CAN high) | Chassis ground | - | Fig.1 |
| MDPS connector | 8 (C-CAN low) | Chassis ground | - | ||

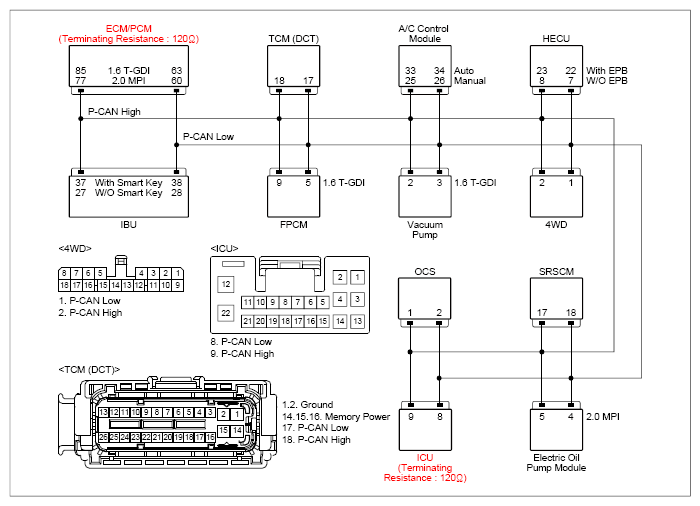

| 4WD ECU connector | 2 (P-CAN high) | Chassis ground | - | Fig.2 | |
| 4WD ECU connector | 1 (P-CAN low) | Chassis ground | - | ||
|
MDPS connector | 1 (power) | Chassis ground | - | B+ |
|
MDPS connector | 1 (ON/START Input) | Chassis ground | - | B+ |
|
MDPS connector | 2 (ground) | Chassis ground | - | Approx. below 1Ω |
|
4WD ECU connector | 2 (P-CAN high) | ICU connector | 9 (P-CAN high) | Approx. below 1Ω |
| 4WD ECU connector | 1 (P-CAN low) | ICU connector | 8 (P-CAN low) | Approx. below 1Ω | |
| MDPS connector | 7 (C-CAN high) | ICU connector | 11 (C-CAN high) | Approx. below 1Ω | |
| MDPS connector | 8 (C-CAN low) | ICU connector | 10 (C-CAN low) | Approx. below 1Ω | |
|
4WD ECU connector | 2 (P-CAN high) | 4WD ECU connector | 1 (P-CAN low) | Approx. 60Ω |
| MDPS connector | 7 (C-CAN high) | MDPS connector | 8 (C-CAN low) | Approx. 60Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.
