Wiring Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

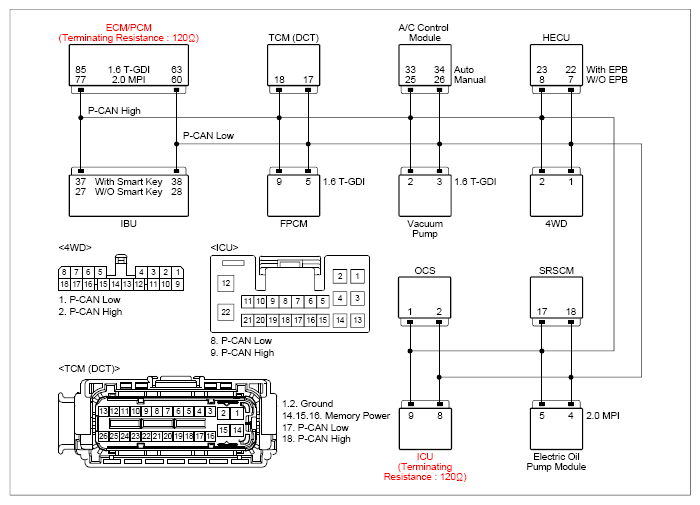

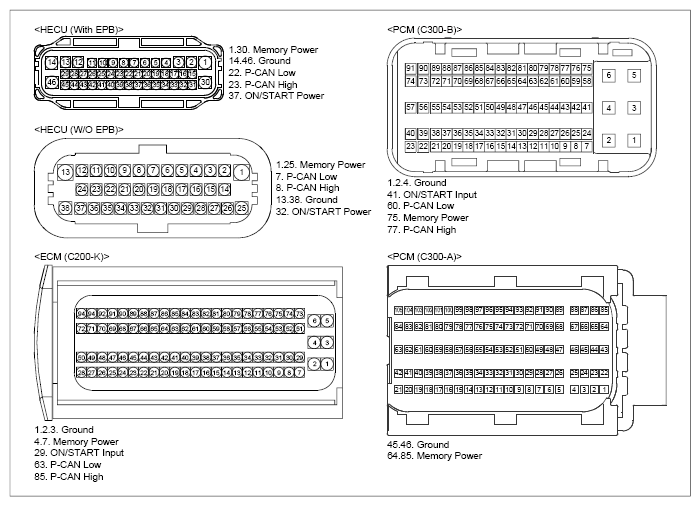

4WD ECU connector | 2 (P-CAN high) | Chassis ground | - | Fig.1 |
| 4WD ECU connector | 1 (P-CAN low) | Chassis ground | - | ||
|
4WD ECU connector | 2 (P-CAN high) | 4WD ECU connector | 1 (P-CAN low) | Approx. 60Ω |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.
