S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Select the menu "S/W Management" with KDS.
  3. Perform "Clutch Learning Reset" in "S/W Management" with KDS.
  4. After this procedure, go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 4
CAUTION: This is the function to discharge the air inside the oil.

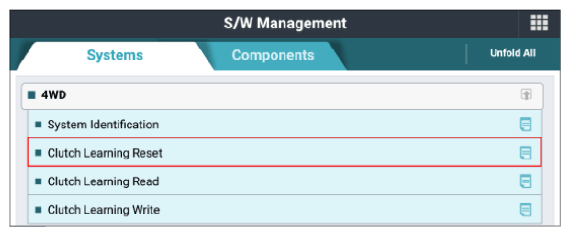

G13485190Courtesy of KIA MOTORS AMERICA, INC.

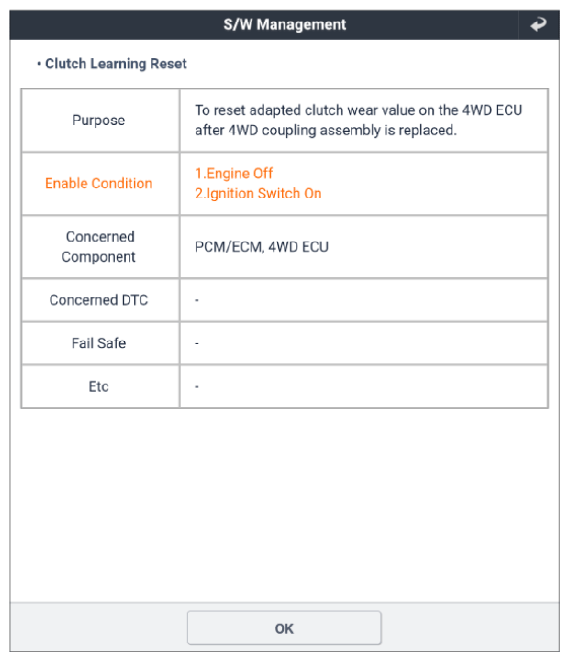

G13485191Courtesy of KIA MOTORS AMERICA, INC.

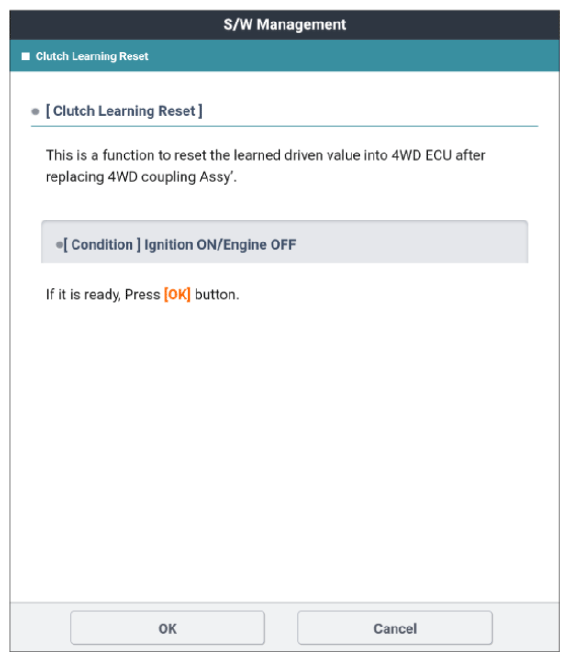

G13485192Courtesy of KIA MOTORS AMERICA, INC.

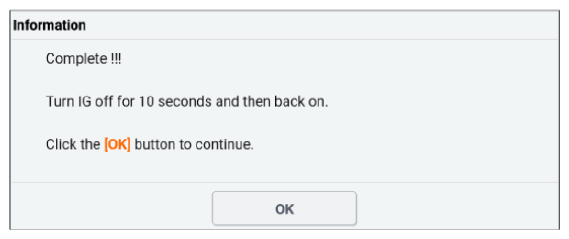

G13485193Courtesy of KIA MOTORS AMERICA, INC.
