Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

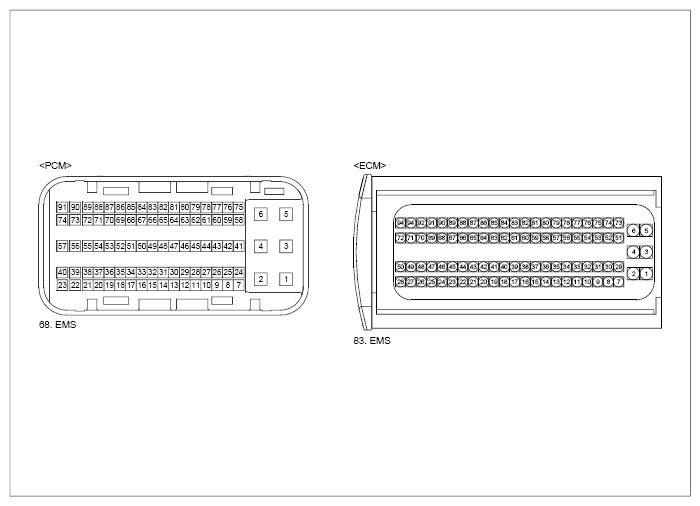

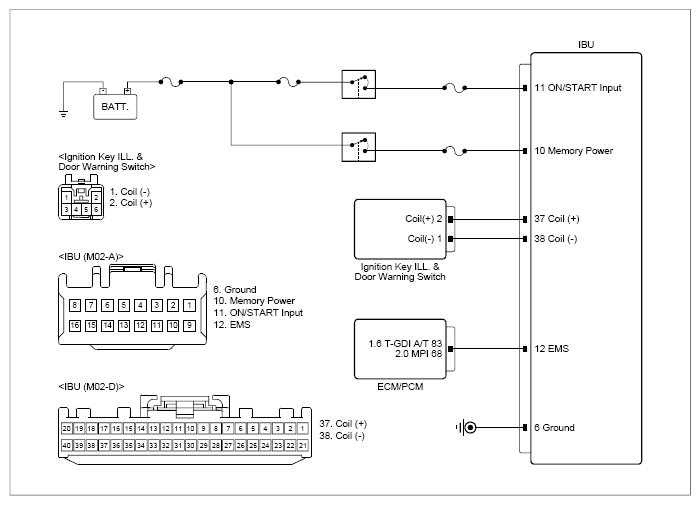

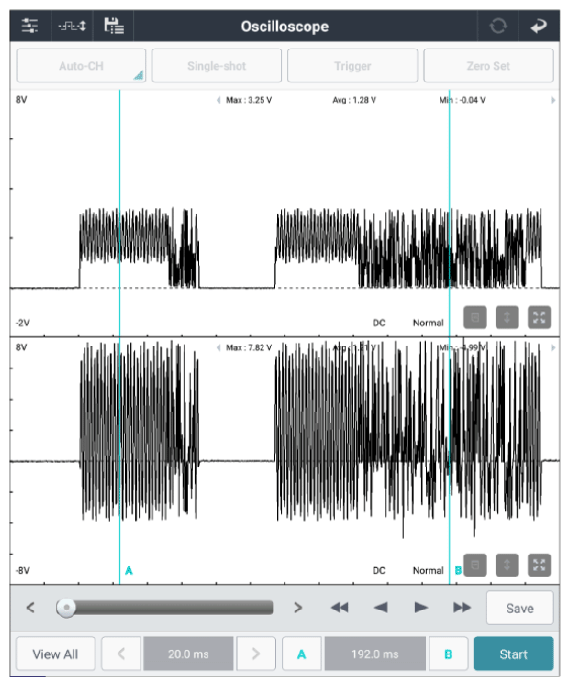

Ignition key ILL. & door warning switch connector | 1 (coil (-)) | Chassis ground | - | Fig. 1 |
| Ignition key ILL. & door warning switch connector | 2 (coil (+)) | Chassis ground | - | ||
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
- If no problems were found with the circuits or connectors, replace the IBU or ECM and go to "VERIFICATION OF REPAIR " procedure.
