Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

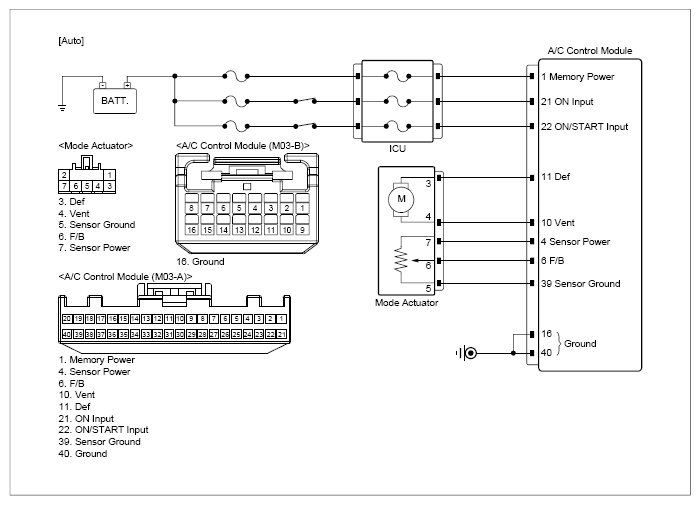

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Mode actuator connector | 3 (def) | A/C control module connector | 11 (def) | Approx. below 1Ω |
| Mode actuator connector | 4 (vent) | A/C control module connector | 10 (vent) | Approx. below 1Ω | |
| Mode actuator connector | 3 (def) | Chassis ground | - | ∞ (infinity)Ω | |
| Mode actuator connector | 4 (vent) | Chassis ground | - | ∞ (infinity)Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
