Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

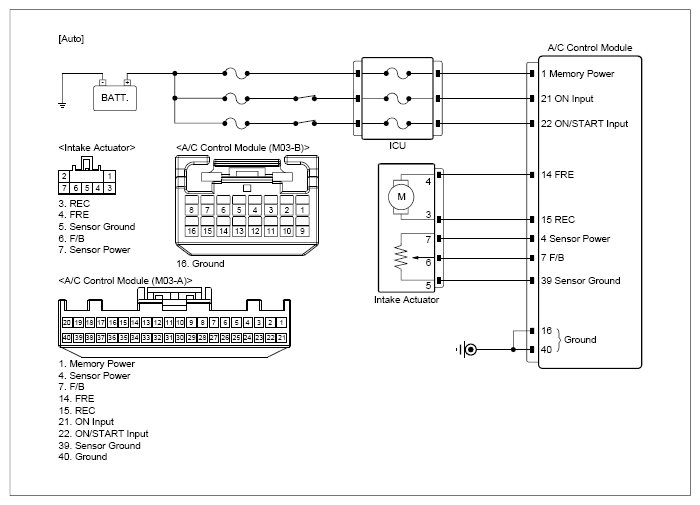

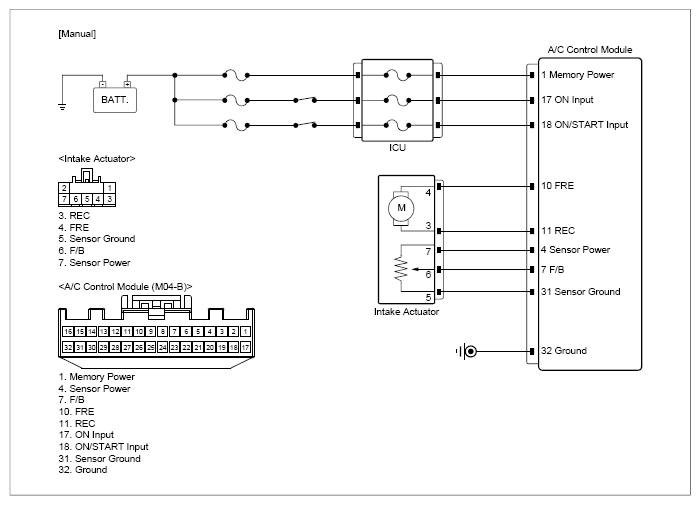

Intake actuator connector | 4 (FRE) | A/C control module connector (auto/manual) | 14/10 (FRE) | Approx. below 1Ω |
| Intake actuator connector | 3 (REC) | A/C control module connector (auto/manual) | 15/11 (REC) | Approx. below 1Ω | |
| Intake actuator connector | 3 (FRE) | Chassis ground | - | ∞ (infinity)Ω | |
| Intake actuator connector | 7 (REC) | Chassis ground | - | ∞ (infinity)Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
