Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

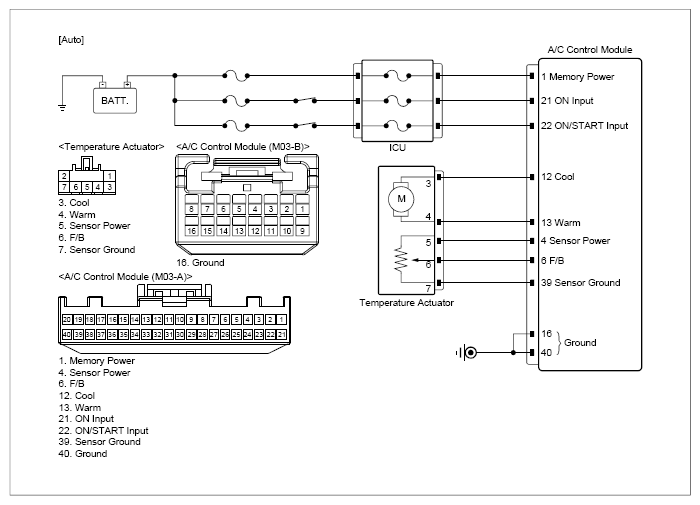

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Temperature actuator connector | 3 (cool) | A/C control module connector | 12 (cool) | Approx. below 1Ω |
| Temperature actuator connector | 4 (warm) | A/C control module connector | 13 (warm) | Approx. below 1Ω | |
| Temperature actuator connector | 3 (cool) | Chassis ground | - | ∞ (infinity)Ω | |
| Temperature actuator connector | 4 (warm) | Chassis ground | - | ∞ (infinity)Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
