Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
ECV connector | 3 (+) | Chassis ground | - | Approx. 0V |
| ECV connector | 2 (-) | Chassis ground | - | Approx. 0V | |
|
ECV connector | 3 (+) | Chassis ground | - | ∞ (infinity)Ω |
| ECV connector | 2 (-) | Chassis ground | - | ∞ (infinity)Ω | |

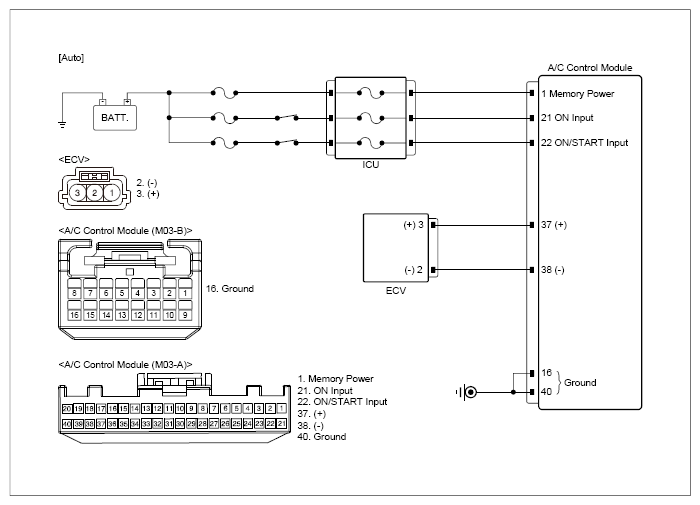

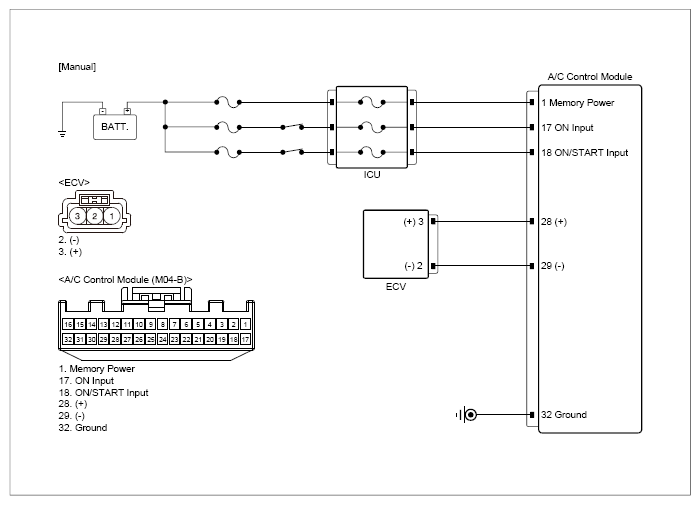

| ECV connector | 3 (+) | A/C control module connector (auto/manual) | 37/28 (+) | Approx. below 1Ω | |
| ECV connector | 2 (-) | A/C control module connector (auto/manual) | 38/29 (-) | Approx. below 1Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
