Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

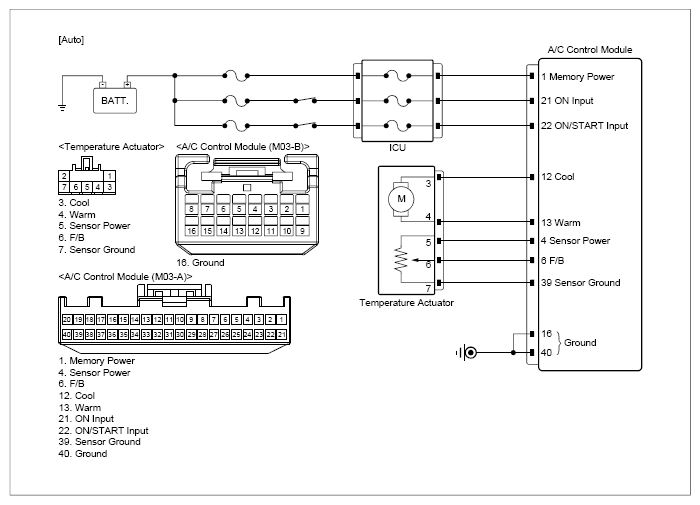

G13483340

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Temperature actuator connector	5 (power)	Chassis ground	-	5V
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	Temperature actuator connector	7 (ground)	Chassis ground	-	Approx. below 1Ω
	Temperature actuator connector	6 (feedback)	A/C control module connector	6 (feedback)	Approx. below 1Ω
	Temperature actuator connector	6 (feedback)	Chassis ground	-	∞ (infinity)Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
