Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

G13483293

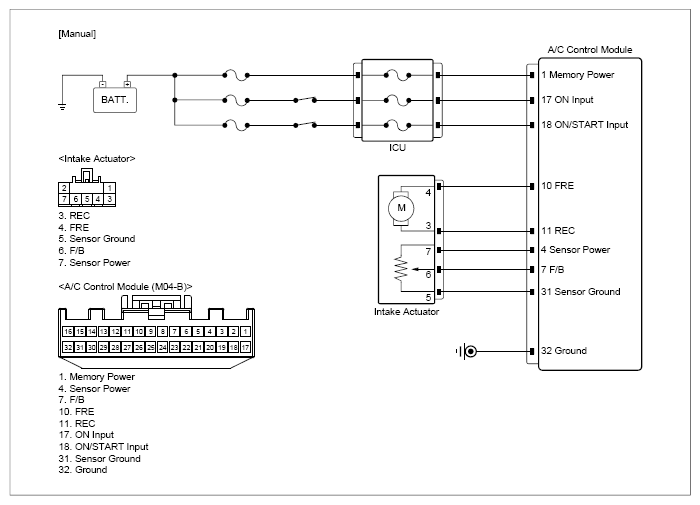

Courtesy of KIA MOTORS AMERICA, INC.

G13483294

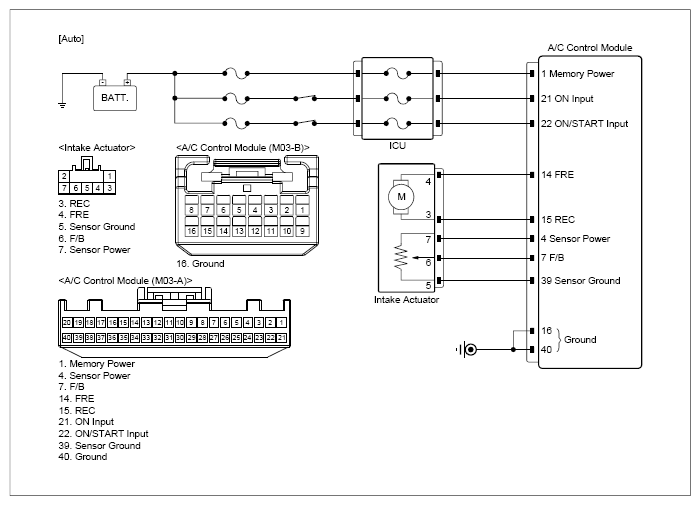

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Intake actuator connector	7 (power)	Chassis ground	-	5V
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	Intake actuator connector	5 (ground)	Chassis ground	-	Approx. below 1Ω
	Intake actuator connector	6 (feedback)	A/C control module connector	7 (feedback)	Approx. below 1Ω
	Intake actuator connector	6 (feedback)	Chassis ground	-	∞ (infinity)Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
