P-Learning (Line/Pulley Pressure Learning) Procedure

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Confirm method (after a transmission or TCU change/update/resetting adaptive values)

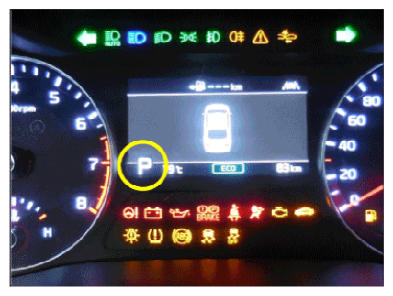

Confirm shift gear flashing in cluster

Courtesy of KIA MOTORS AMERICA, INC.

Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

Enable Condition
- Transmission fluid temperature: 30 to 90°C (86 to 194°F)
- Current gear: P range
- Brake pedal "OFF"
P-learning method
- TCU learns automatically when the above conditions are met. (Do not press the brake pedal and wait for it to complete.)
- During the learning process, the engine RPM is raised to secure hydraulic pressure, and the RPM variation occurs during the learning process. (for about 30s)
- When learning is complete, RPM is stabilized again.
