Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

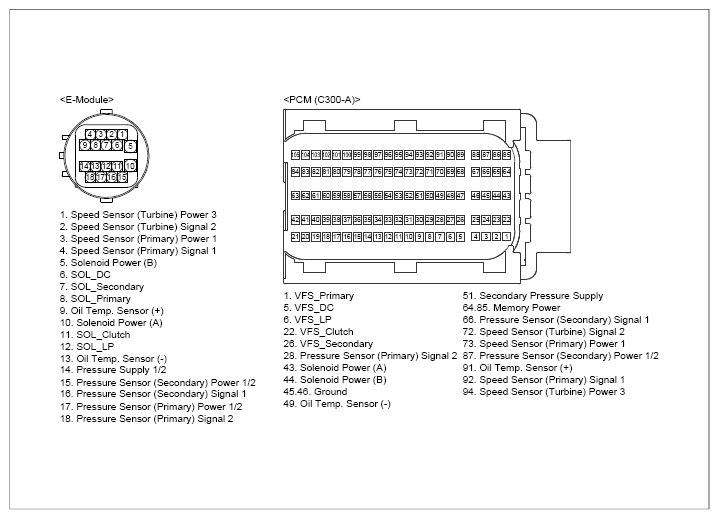

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

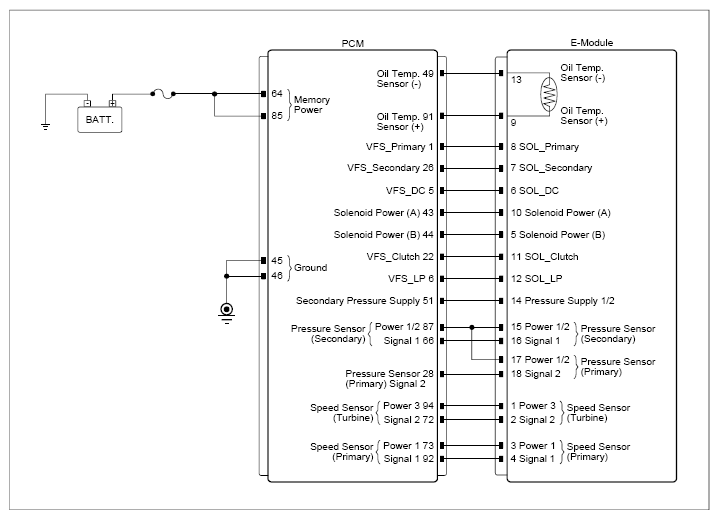

PCM connector | 64, 85 (Memory power) | Chassis ground | - | B+ |
|
PCM connector | 45, 46 (ground) | Chassis ground | - | Approx. below 1Ω |
Good
- Carefully re-do this troubleshooting guide steps.
- If a problem occurs continuously, perform the End Of Line (EOL) coding and re-check.
* If the problem persists after performing EOL, replace the PCM and perform "Vehicle S/W Management ".
No Good
- Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
