Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

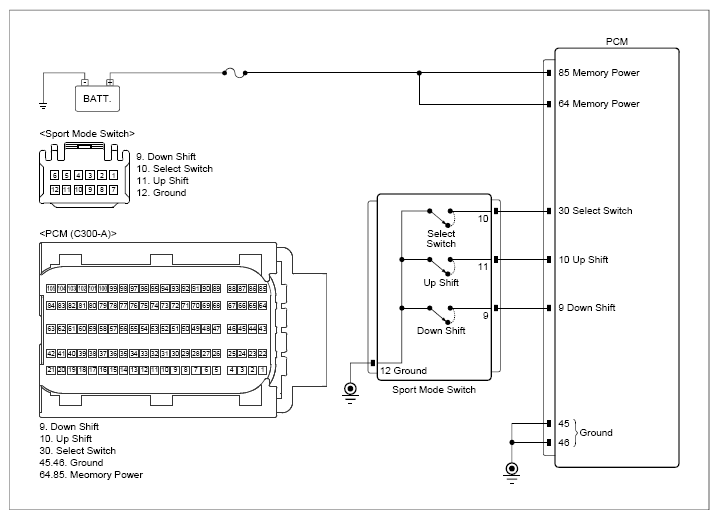

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
ATM shift lever connector | 10 (Select switch) | Chassis ground | - | Approx. 11.4V |
| ATM shift lever connector | 11 (Up shift) | Chassis ground | - | Approx. 11.4V | |
| ATM shift lever connector | 9 (Down shift) | Chassis ground | - | Approx. 11.4V | |
|
ATM shift lever connector | 10 (Select switch) | PCM connector | 30 (Select switch) | Approx. below 1Ω |
| ATM shift lever connector | 11 (Up shift) | PCM connector | 10 (Up shift) | Approx. below 1Ω | |
| ATM shift lever connector | 9 (Down shift) | PCM connector | 9 (Down shift) | Approx. below 1Ω | |
Good
- If problem still occurs, go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
