Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

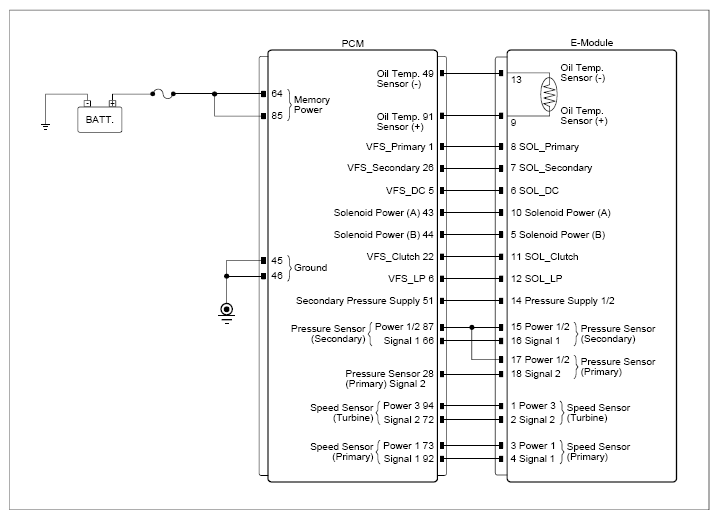

G13507399

Courtesy of KIA MOTORS AMERICA, INC.

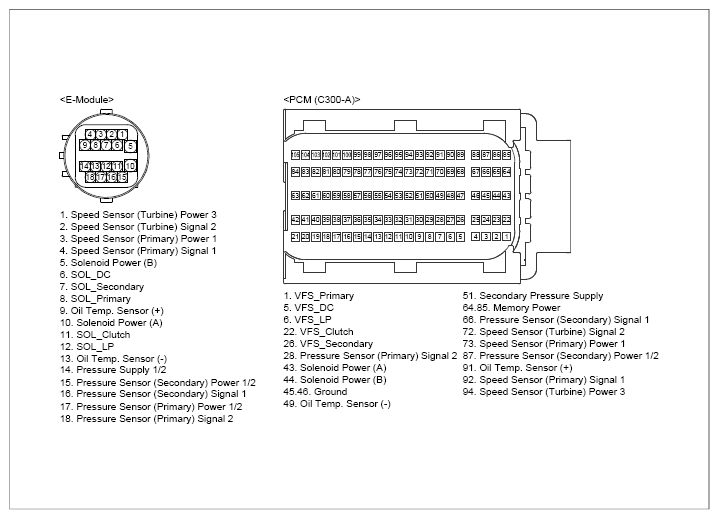

G13507400

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	E-module connector	15 (secondary power)	Chassis ground	-	Approx. 5V
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	E-module connector	17 (primary power)	Chassis ground	-	Approx. 5V
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	E-module connector	16 (secondary signal)	Chassis ground	-	∞ (infinity)Ω
	E-module connector	16 (secondary signal)	PCM connector	66 (secondary signal)	Approx. below 1Ω
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	E-module connector	18 (primary signal)	Chassis ground	-	∞ (infinity)Ω
	E-module connector	18 (primary signal)	PCM connector	28 (primary signal)	Approx. below 1Ω

Good

If problem still occurs, go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
