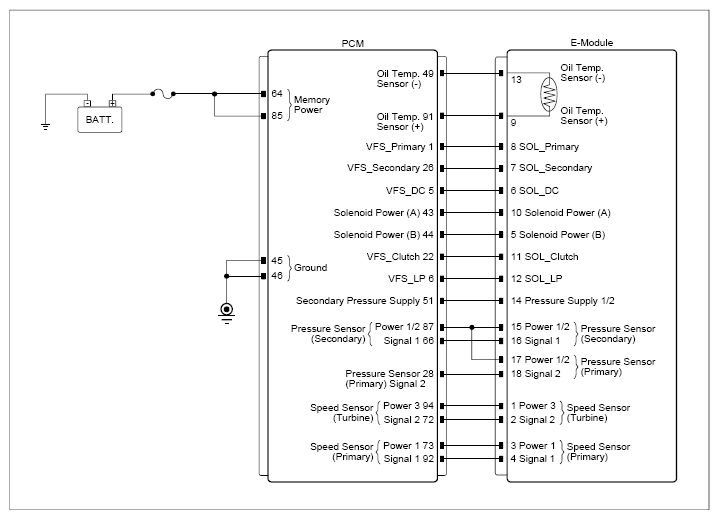

Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

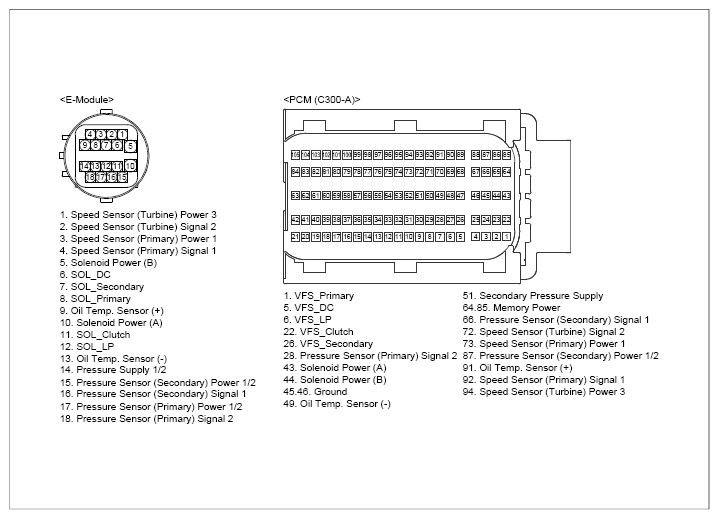

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
E-module connector | 15 (power) | Chassis ground | - | Approx. 5V |
| E-module connector | 16 (signal) | Chassis ground | - | ∞ (infinity)Ω | |
|
E-module connector | 16 (signal) | PCM connector | 66 (signal) | Approx. below 1Ω |
Good
- If problem still occurs, go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
