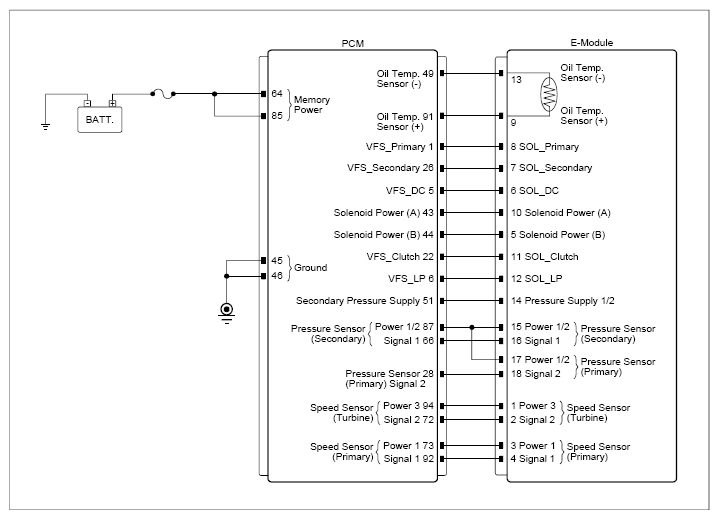

Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

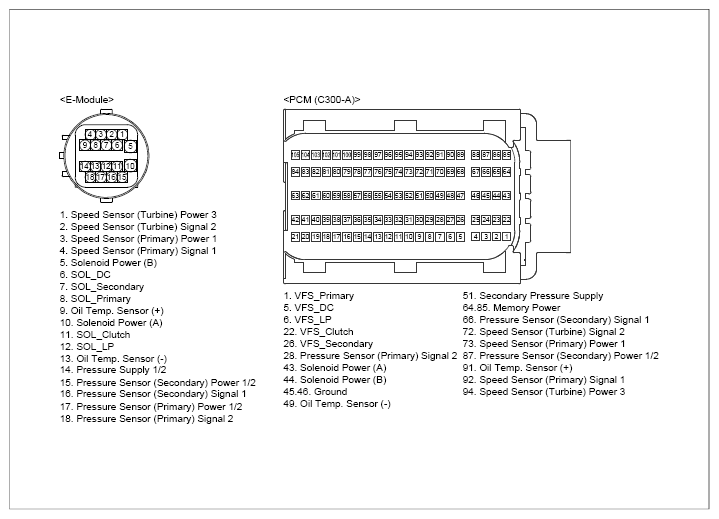

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
E-module connector | 10 (power) | Chassis ground | - | Approx. 2.5V |
| E-module connector | 6 (DC) | Chassis ground | - | Approx. 2.9V | |
|
E-module connector | 6 (DC) | Chassis ground | - | ∞ (infinity)Ω |
| E-module connector | 6 (DC) | PCM connector | 5 (VFS_DC) | Approx. below 1Ω | |
Good
- If problem still occurs, go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
