Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

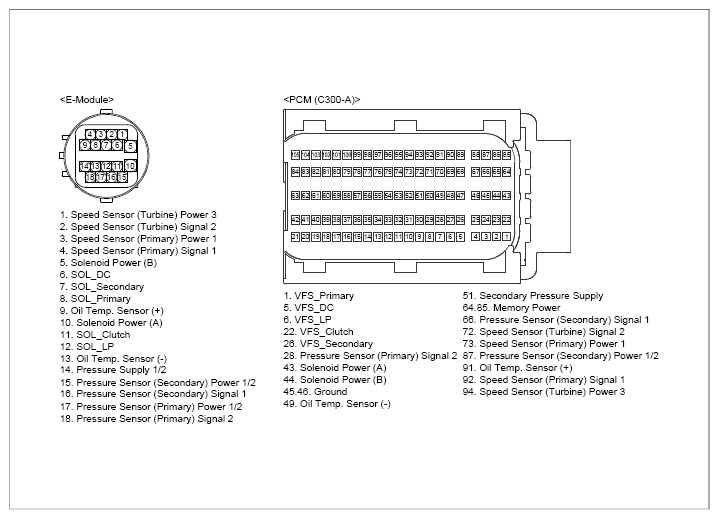

G13507288Courtesy of KIA MOTORS AMERICA, INC.

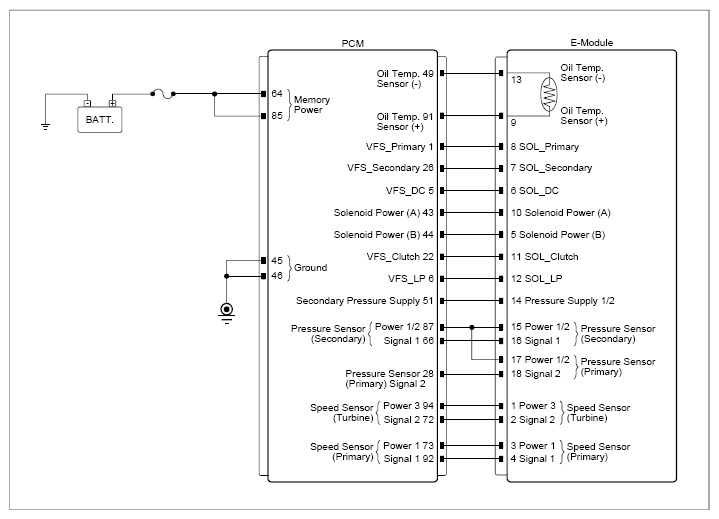

G13507289Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Disconnect the electrical connector(s) from the concerned component.
  2. Ignition "ON".
 E-module connector 9 (+) Chassis ground - Approx. 5V
  1. Disconnect the electrical connector(s) from the concerned component.
  2. Ignition "ON".
 E-module connector 13 (-) Chassis ground - Approx. 0V

Good

No Good
