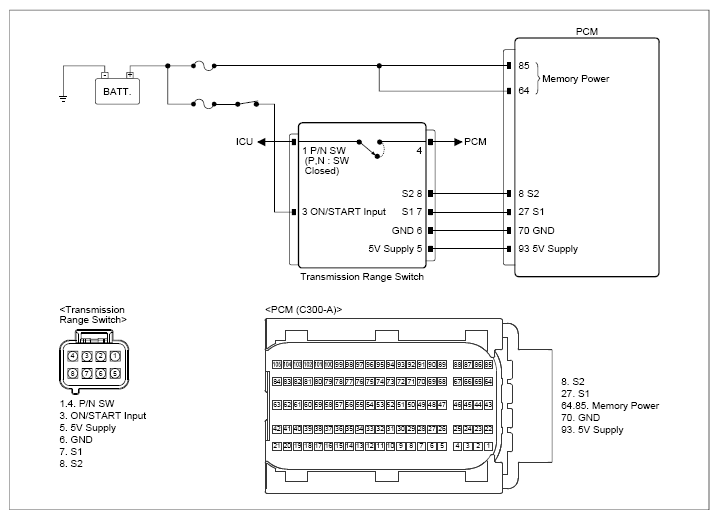

Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Transmission range switch connector | 5 (power) | Chassis ground | - | Approx. 5V |
| Transmission range switch connector | 7 (S1) | Chassis ground | - | Approx. 0V | |
| Transmission range switch connector | 8 (S2) | Chassis ground | - | Approx. 0V | |
| Transmission range switch connector | 6 (ground) | Chassis ground | - | Approx. 0V | |
|
Transmission range switch connector | 7 (S1) | Chassis ground | - | ∞ (infinity)Ω |
| Transmission range switch connector | 8 (S2) | Chassis ground | - | ∞ (infinity)Ω | |
| Transmission range switch connector | 6 (ground) | Chassis ground | - | Approx. below 1Ω | |
| Transmission range switch connector | 7 (S1) | PCM connector | 27 (S1) | Approx. below 1Ω | |
| Transmission range switch connector | 8 (S2) | PCM connector | 8 (S2) | Approx. below 1Ω | |
| Transmission range switch connector | 6 (ground) | PCM connector | 70 (ground) | Approx. below 1Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in signal circuit between inhibitor switch and TCM and then go to "VERIFICATION OF REPAIR " procedure.
