Component Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification

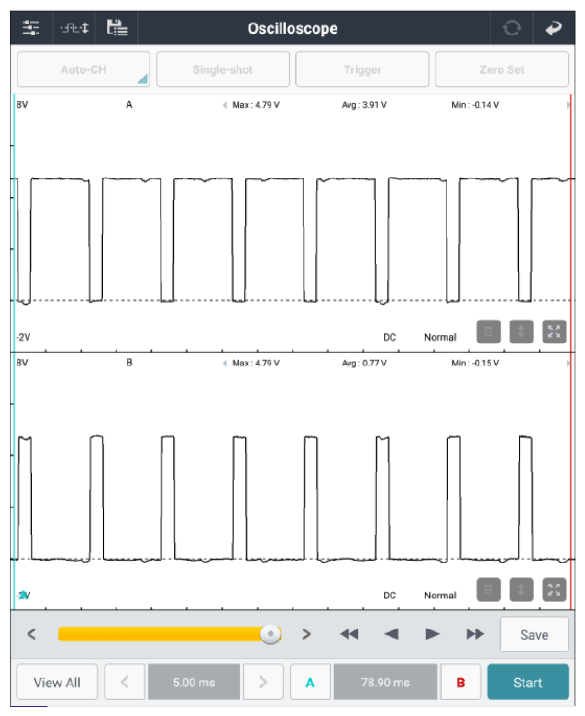

Engine "ON". Gear lever position at "P"	Transmission range switch connector	7 (S1)	Chassis ground	-	Fig.1
Engine "ON". Gear lever position at "P"	Transmission range switch connector	8 (S2)	Chassis ground	-	Fig.1

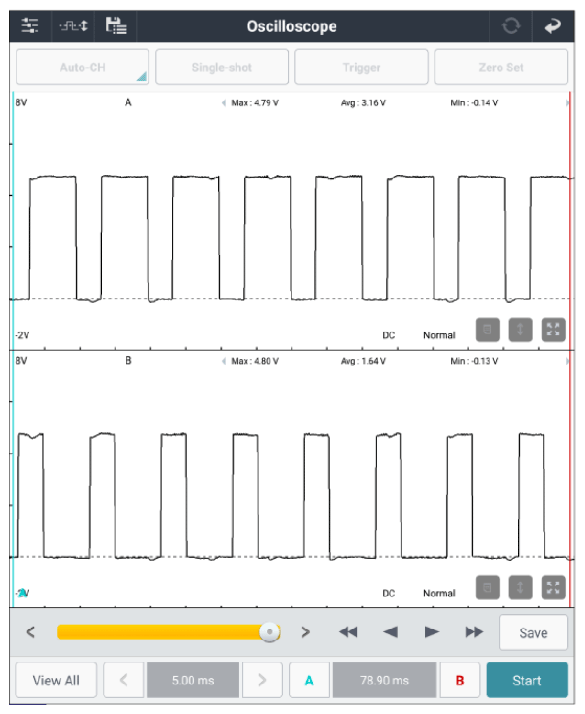

Engine "ON". Gear lever position at "R"	Transmission range switch connector	7 (S1)	Chassis ground	-	Fig.2
Engine "ON". Gear lever position at "R"	Transmission range switch connector	8 (S2)	Chassis ground	-	Fig.2

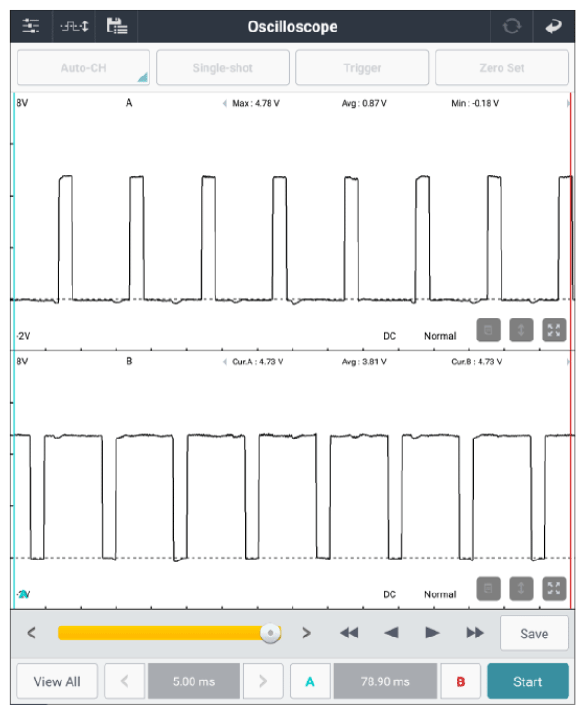

Engine "ON". Gear lever position at "N"	Transmission range switch connector	7 (S1)	Chassis ground	-	Fig.3
Engine "ON". Gear lever position at "N"	Transmission range switch connector	8 (S2)	Chassis ground	-	Fig.3

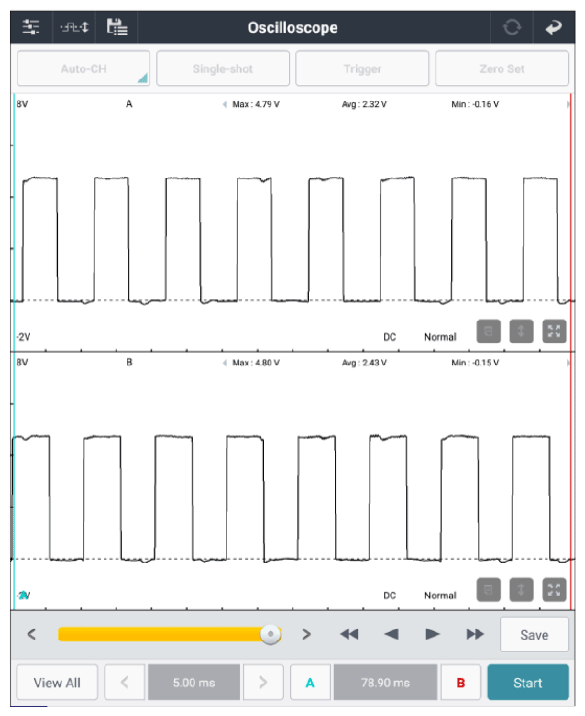

Engine "ON". Gear lever position at "D"	Transmission range switch connector	7 (S1)	Chassis ground	-	Fig.4
Engine "ON". Gear lever position at "D"	Transmission range switch connector	8 (S2)	Chassis ground	-	Fig.4

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Carefully re-do this troubleshooting guide steps.
Check the alignment of shift cable. If problem occurs, align the cable and then go to "VERIFICATION OF REPAIR " procedure
If problem still occurs, replace PCM and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace inhibitor switch and then go to "VERIFICATION OF REPAIR " procedure.
