Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

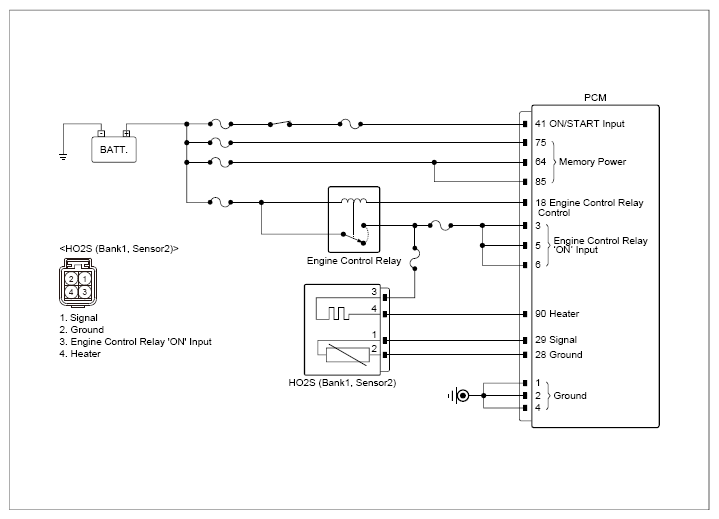

HO2S (Bank1, Sensor2) connector | 1 (signal) | Chassis ground | - | 0V |
|
HO2S (Bank1, Sensor2) connector | 2 (ground) | Chassis ground | - | Approx. below 1Ω |
|

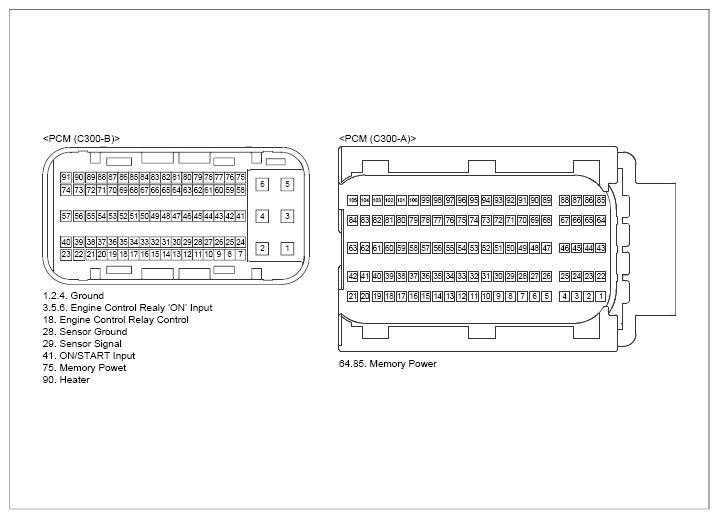

HO2S (Bank1, Sensor2) connector | 1 (signal) | ECM/PCM connector | 29 (signal) | Approx. below 1Ω |
| HO2S (Bank1, Sensor2) connector | 2 (ground) | ECM/PCM connector | 28 (ground) | Approx. below 1Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
