Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Engine "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.

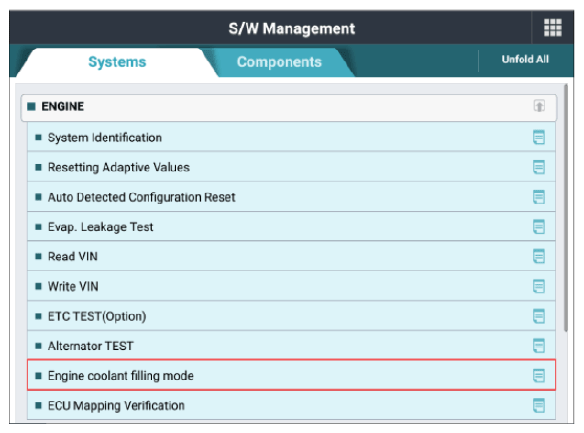

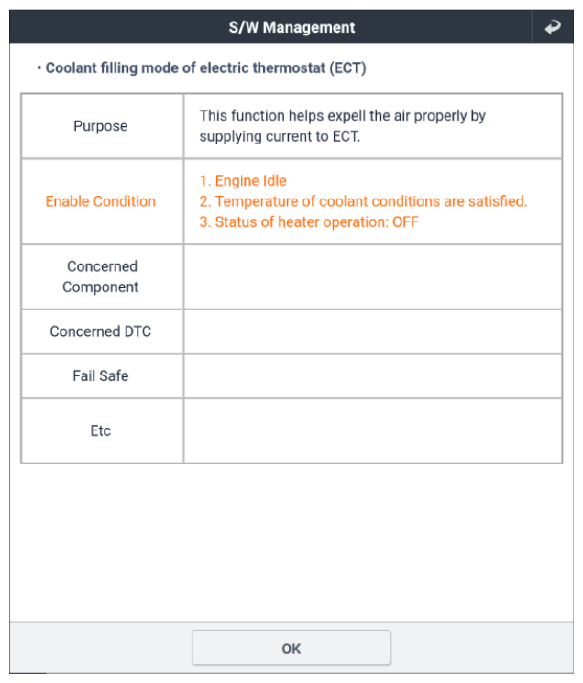

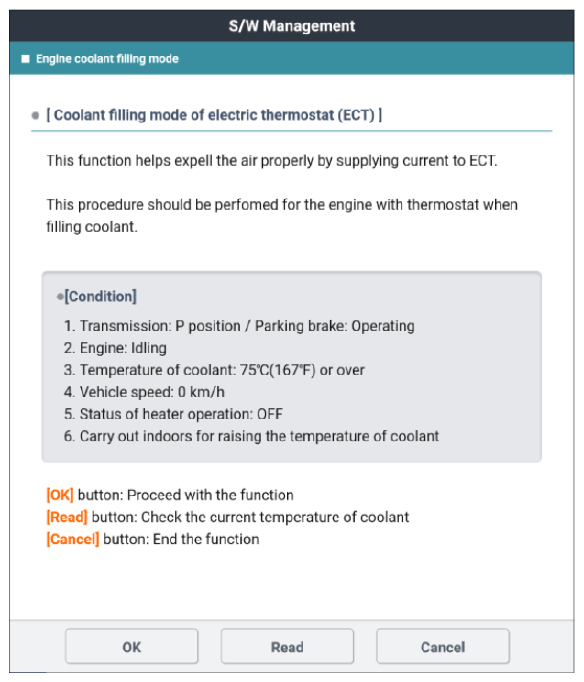

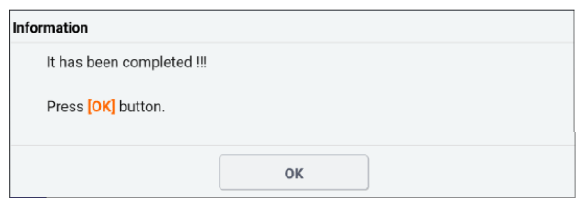

 Fig.1 to 4
G13506356Courtesy of KIA MOTORS AMERICA, INC.
G13506357Courtesy of KIA MOTORS AMERICA, INC.
G13506358Courtesy of KIA MOTORS AMERICA, INC.
G13506359Courtesy of KIA MOTORS AMERICA, INC.
