Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

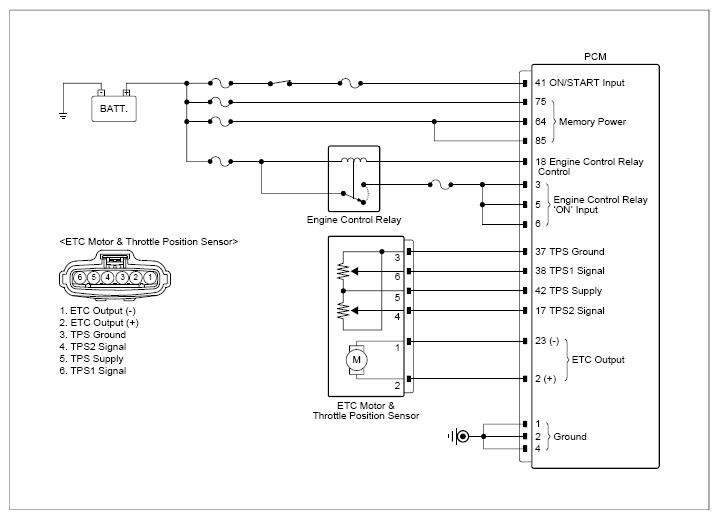

G13506341Courtesy of KIA MOTORS AMERICA, INC.

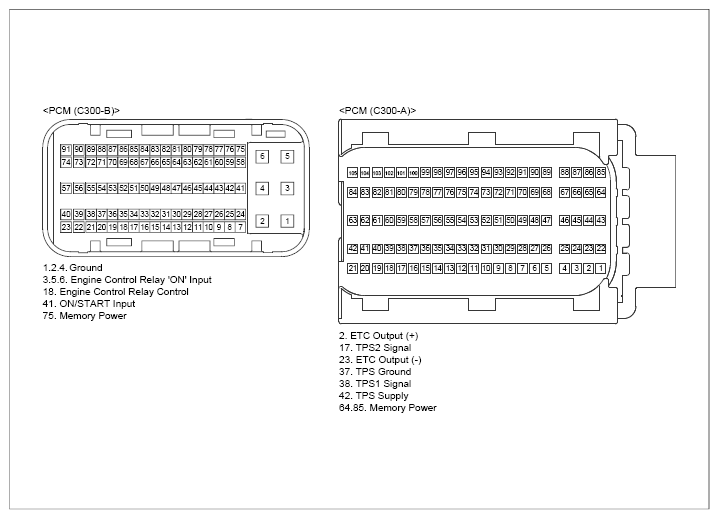

G13506342Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF" and disconnect ETC motor & TPS connector.
  2. Ignition "ON".
 ETC motor & TPS connector 5 (TPS supply) Chassis ground - Approx. 5V
  1. Ignition "OFF" and disconnect ETC motor & TPS connector.
  2. Ignition "ON".
 ETC motor & TPS connector 6 (TPS1 signal) Chassis ground - Approx. 4.8V
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 ETC motor & TPS connector 6 (TPS1 signal) Chassis ground - ∞ (infinity)Ω
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 ETC motor & TPS connector 3 (ground) Chassis ground - Approx. below 1Ω

Good

No Good
